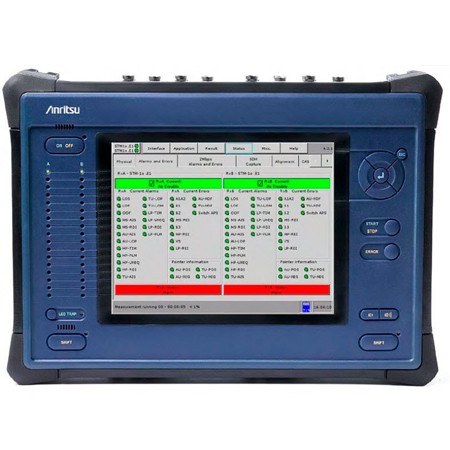

CMA 3000 is Anritsu's next-generation portable, compact and user-friendly field tester. It’s designed specifically for field technicians who install and maintain mobile-access and fixed-access networks, transmission networks and switching. The CMA 3000 is a powerful tool for a wide range of applications, including fast first-aid troubleshooting to comprehensive, in-depth and all-layer analysis of transmission problems.The basic CMA 3000 configuration, with its two 2 Mbps receivers and transmitters, supports framed and unframed testing and monitoring of 2 Mbps systems. This makes CMA 3000 the ideal instrument for measuring in- and out-of-service transmission quality.

Features Anritsu CMA 3000
• GSM, GPRS/EDGE, UMTS testing
• Testing of frame relay, ATM and IP
• Generation of up to 8 VoIP calls simultaneously on Ethernet test interfaces in the CMA 3000. For one VoIP call at the time the voice quality measurement option can provide information on MOS and R-factor for the call
• Generation of up to 8 ISDN (PRI) calls simultaneously
• Test interfaces for SDH, PDH, Ethernet and data interfaces
• Comprehensive out-of-service testing for installation, provisioning and propagation time analysis
• In-service, bi-directional monitoring at all speeds for fast troubleshooting, traffic monitoring, identification of synchronization problems and error performance measurement
• Performance analysis
• Physical line monitoring
• Intuitive user interface, with large color touch-screen display and easy-to-understand graphical symbols
• Quickly customize and store setup and result screens to fit your personal needs and work routines
• Easy-to-install options
• Powered by a high-capacity LiIon battery

Interfaces
• E1, E3, SDH (STM-1, STM-4)
- Alarm and error monitoring o Overhead byte analysis
- Multiplexing and de-multiplexing
- BER testing
• Ethernet 10/100/1000
- Traffic generation and analysis
- Network monitoring
• V-series data interfaces
• Receive and transmit configurations
- Intrusive testing (Tx/Rx)
- Passive monitoring (Rx/Rx)
- Dual Tx/Rx at E1 and E3
