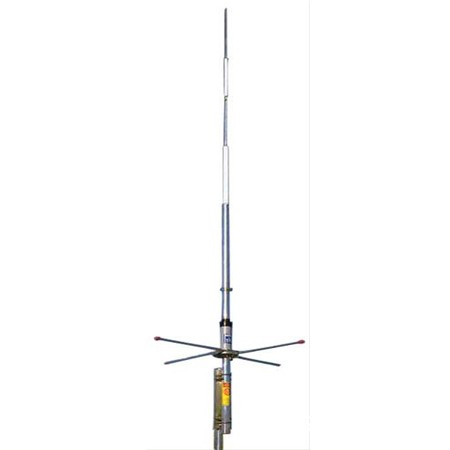

Antenna Hustler G7

Hustler base model G7-144 vertical antennas feature a 7 dB maximum effective gain, which provides a more consistent pattern, even in marginal areas. Extremely low-angle stacked 5/8 wave radiators provide superior gain. Harsh environments do not affect their mechanical or signal integrity. They are constructed from high-strength aluminum and fiberglass for all-weather durability. Hustler Antenna base model G7-144 vertical antennas are totally self-supporting and are easily assembled. When they are disassembled, the longest part is approximately 4 ft., which makes them easy to handle and move.

• Brand: Hustler Antenna
• Manufacturer's Part Number: G7-144
• Part Type: VHF/UHF Base Vertical Antennas
• Product Line: Hustler Base Model G7-144 Vertical Antennas
• DXE Part Number: HSR-G7-144

• Vertical Antenna Height: 15.33 ft.
• Antenna Material: Fiberglass/Aluminum
• Antenna Power Rating: 600 W
• Antenna Connector: Type N, female
• Mast Mounting Type: Clamp-on
• Mast Mounting Clamp Minimum: 1.000 in.
• Mast Mounting Clamp Maximum: 1.750 in.
• Wind Surface Area: 0.970 sq. ft.
• Antenna Wind Survival: 100 mph
• Antenna Weight: 10.00 lbs.
• Quantity: Sold individually.
• Notes: Mast clamp hardware included. Rated at 600 W FM.
• Band Coverage: 2 meters
• Frequency Coverage Range: 144-148 MHz
• Vertical Antenna Gain: 7.0 dBd
