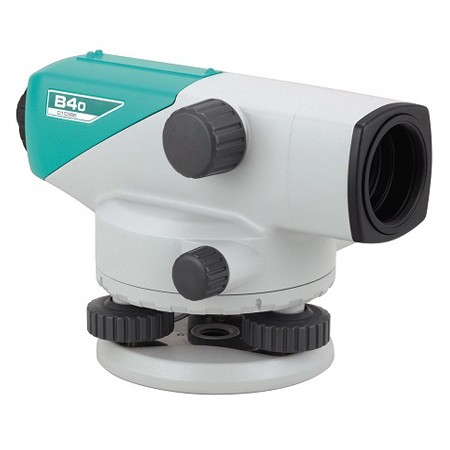

| Product Model | SOKKIA B40 | |
| TELESCOPE | ||
| Length | 215mm | |
| Objective aperture | 32mm(1.26in. ) | |
| Magnification | 24X | |
| Resolving power | 4" | |
| Image | Erect | |
| Resolving Power | 4.0" | |
| Field of View | 1° 25' (2.5m/8.2ft. ) | |
| Minimum focusing distance | 0.2m (7.9in. ) from end of telescope 0.3m (1ft) from instrument center |
|
| Image | Erect | |
| Reticle pattern | Cross line | |
| Stadia constant | 0 | |
| Stadia radio | 100 | |
| Focusing knob | 1-speed | |
| Sight aid | Gun sight | |
| Accuracy (standard deviation for 1 km double run leveling) | ||
| Without micrometer | 2.0mm (0.8in. ) | |
| With micrometer | - | |
| Compensator | ||
| Type | Pendulum compensator with magnetic damping system | |
| Setting accuracy | 0.5" | |
| Working range | ± 15' | |
| Circular level | ||
| Sensitivity | 10' /2mm | |
| Mirror | Plane mirror | |
| Horizontal Circle | ||
| Diameter | 103mm (4.1in. ) | |
| Graduations | 1° (1gon) | |
| General | ||
| Horizontal motion drive | Clampless, endless, double-sided knobs. | |
| Water resistance | IPX6 (IEC 60529: 2001) | |
| Operation temperature | -20 to +50º C (-4 to +122º F) |
|
| Size | Width | 130mm (5.12in. ) |
| Length | 215mm (8.46in. ) | |
| Height | 135mm (5.31in. ) | |
| Weight | 1.7Kg (3.7lb. ) | |
Complete with:
• 1 x Aluminium Tripod
• 1 x Rambu Ukur 3 M
