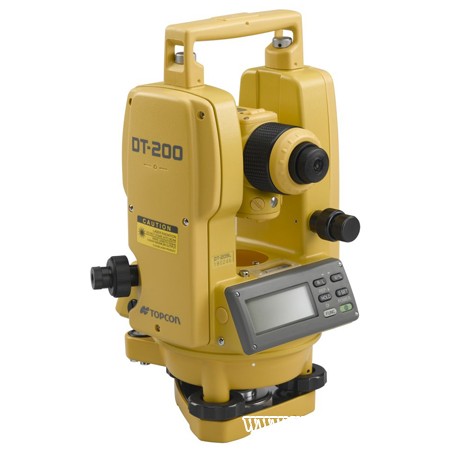

Digital Theodolite Topcon DT-205L (Laser) siap dengan ketepatan kualitas dan ekonomis, desain kompak yang cocok untuk sehari-hari dan mengukur posisi aplikasi seperti topo tata letak dan konstruksi.

Features Topcon DT-205L:
• 5" Angle Measurement Accuracy
• Long Battery Life
• Waterproof and Dustproof Digital Theodolites
• 633nm diode laser that can
• be seen up to 50 meters away
• outside in daylight

Specifications Topcon DT-205L:

Telescope:
• Length: 152 mm
• Objective lens: 45 mm
• Magnification: 30x power
• Field of view: 1°30'
• Resolving power: 2.5 power
• Minimum focus: 1m cm
• Stadia ratio: 100
• Stadia constant: 0
• Sighting collimator: Double

Electronic Angle Measurement:
• Method: Absolute Reading
• Detecting: 2 horizontal sides, 1 vertical sides
• Minimum reading: 1"/5" arc seconds, 0.2mgon/1mgon mgon
• Accuracy: 5 arc seconds, 71mm Diameter Circle

Laser Pointer
• Method: Focusing
• Wave length/Power: 633nm/0.6mW

Display
• Display sides: 2
• LCD: 7 segments

Data Output
• Serial signal connector: RS-232C

Compensator
• Tilt sensor: Vertical
• Compensating range: ±3 ft

Optical Plummet Telescope
• Magnification: 3x power
• Field of view: 3° degrees

Level Sensitivity
• Plate level: 40°/2mm
• Circular level: 10°/2mm

Water Protection
• Standard: IP66 rating

Power Supply
• Battery: 4AA batteries

Operating time Alk:
• Theodolite only: 140 Hours
• Laser only: 80 Hours
• Theodolite and laser: 45 Hours

Environmental:
• Operating Temp: -20 to +50 degrees C

Dilengkapi dengan:
• Aluminium tripod
• Rambu ukur 3 m
