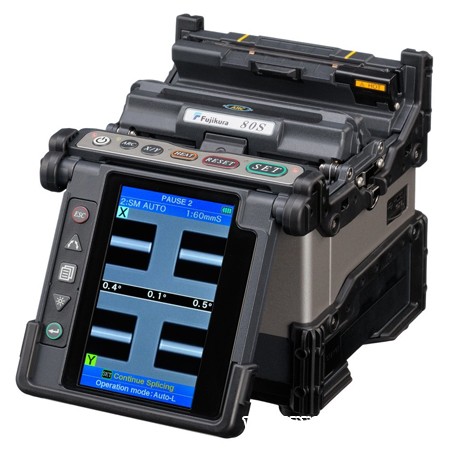

Fujikura 80S model is successor of the famous series of splicers: Fujikura FSM-60S and FSM-50S. The new design streamlines the steps required to complete splices, resulting in greater productivity. "Configurable automation" features allow you to customize the operation of the machine to best suit your particular splicing technique and process. Splicing takes only 7 seconds, and heating takes only 14 seconds.
It may be powered from 200 V AC, or using a battery (included).
Fusion Splicer Fujikura 80S "Kit A" Plus is the same as Fusion Splicer Fujikura 70S "Kit A" Plus.
Features Fujikura 80S
• Splices all known types of fibers.
• Fiber core alignment.
• Typical average splice loss for single mode cable with G.652D fiber is only 0.02 dB.
• Reduced splicing time – 7 seconds only.
• Heating time – 14 seconds only.
• Increased electrode lifetime – up to 3000 splicing cucles with one set, without splicing quality loss.
• Battery life increased up to 200 full splicing/heating cycles.
• Rotary color anti-glare LCD 4.73", high contrast and vividness.
• Simultaneous display of X and Y axes.
• May splice SC, LC, MPO connectors.
• Automatic: wind-protective lid, heater, fiber holders.
• Increased water, dust and shock resistance, may be used under severe environment conditions.
• Automatic arc calibration.
• Battery BTR-09 is included.
• New comfortable carrying case, optimized for quick operation start.
• The case may be used as a working table.
• Operation manual is installed into the splicer.
• Software update option.
• 1 years of full warranty with the device replacement.
Specifications Fujikura 80S
|
Splicing / Heating |
|
|
Typical Splicing Time |
7 sec (for SM) |
|
Typical Heating Time |
14 sec (for 60 mm sleeves) |
|
Applicable Fibers |
SMF (ITU-T G.652) |
|
Cladding Diameter |
80 μm – 150 μm |
|
Coating Diameter |
100 μm – 1,000 μm |
|
Fiber Cleave Length |
5 – 16 mm |
|
Typical Average Splice Loss |
0,02 dB (SMF) |
|
Splice Loss Estimate |
core |
|
Return Loss |
≤60 dB |
|
Compatible Protection Sleeves |
60 mm |
|
Splicing Modes |
100 user programmable |
|
Heating Modes |
30 (10 preset + 20 user programmable) |
|
Internal Memory |
up to 2000 splice results and parameters |
|
Additional Options |
|
|
Mechanical Proof Test |
stretching force 1.96 – 2.25 N |
|
Electrodes lifetime |
3000 cycles |
|
External Interfaces |
USB 1.1, Mini-DIN |
|
Data Display |
|
|
Screen type |
rotary anti-glare LCD |
|
Screen Size |
4.73" |
|
Colour |
Yes |
|
Viewing |
Yes (2 CMOS cameras) |
|
Magnification |
х200 |
|
Power Supply |
|
|
Adapter ADC-19 |
220 V AC |
|
Battery BTR-09 |
4000 mAh |
|
Battery Cycles |
up to 200 splicing/heating cycles |
|
Operation Conditions |
|
|
Temperature |
–10 ~ +50°C |
|
Altitude above sea level |
0 ~ 5000 m |
|
RH |
0 ~ 95% |
|
Max. wind velocity |
34 mph / 15 m/s |
|
Storage Conditions |
|
|
Temperature |
–40 ~ +80 °C |
|
RH |
0 ~ 95% |
|
Protection |
|
|
Shock Resistance |
height: 76 cm, any surface |
|
Dust Resistance |
dust particles from 0.1 to 500 μm |
|
Rain Resistance |
10 mm/h for 10 min |
|
Dimensions & Weight |
|
|
Width |
150 mm |
|
Length |
159 mm |
|
Height |
146 mm |
|
Weight |
2,5 kg (with adapter ADC-18) |
