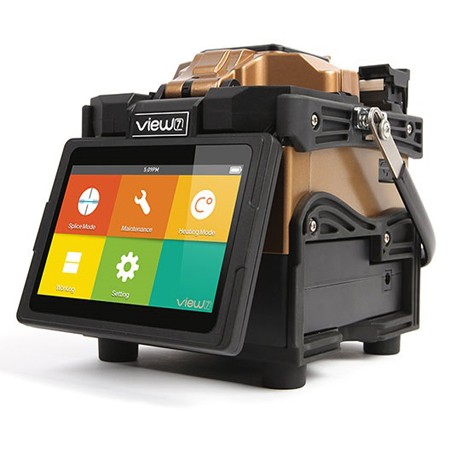

Splicers Inno View 7 menawarkan pengalaman kerja paling dapat diandalkan untuk pelanggan berharga kami.
5 inch resolusi tinggi warna LCD layar sentuh Inno View 7 dengan GUI intuitif user-friendly (Graphic User Interface) menawarkan gambar serat besar dan jelas kepada pengguna. Dengan double-menekan layar, pengguna dapat memperbesar & keluar gambar untuk pembesaran tertinggi di dunia sampai 520x. Inno View 7 menawarkan efisiensi kerja yang maksimal melalui waktu pemanasan cepat dari 13s dan kapasitas baterai ultra-tinggi 355 siklus sambatan / panas. Selain itu, 3 lampu LED memberikan kondisi sambatan terang untuk pengguna bekerja di bawah lingkungan gelap.
Fitur Inno View 7:
• Inti Penyelarasan Metode Penyambungan dengan DACAS (Analisa Digital Inti Penyelarasan System)
• Dunia 's Pembesaran tertinggi dan Resolusi
• 5 inch Resolusi Tinggi Color LCD Touch Screen
• User-friendly Cerdas GUI
• Double Tap Zoom in & out
• Waktu Pemanasan Cepat
• Ultra-tinggi Kapasitas Batter
• Pemegang SOC dilepas dan Pemanas Oven
• 3 LED terang dan Illuminated keypads
• Untuk Gelap Lingkungan
• Clamp Keramik untuk Peningkatan Daya Tahan
• Mudah untuk Ganti Elektroda
• Penutup pelindung
• Harsh Kondisi Cuaca Kemampuan beradaptasi
• 2.17kg berat (tanpa baterai)
Specifications Inno View 2
| Model | View 7 |
|---|---|
| Dimension | 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper) |
| Weight | 2.80KG (with battery) / 2.17KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable (with VFH-40) |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 8 sec |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 13 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 9800mAh Battery Capacity, Typical 355 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
The INNO View 7 Package comes with the following
• Fusion Splicer View 7
• High Precision Cleaver VF-15H
• Fiber Holder VFH-40( equipped) / FH-SOC
• SOC Heater Cover HTS-SOC
• AC Adapter JS-180300
• Cooling Tray CG-22
• Electrode E-50
• Electrode Grinder EG-18
• Manual CD
• Battery Pack LBT-40
• Power Cable ACC-25
• USB Cable USB-5P
• Cigarette Lighter Cable CJ-11
• Carrying Case NBX-35 View 7, a core-alignment splicer with the world’ s highest fiber image magnification rate, is the most powerful and innovative fusion splicer in the market.
