• Both X and Y Simultaneous view
• 5 inches LCD monitor
• Inner light to set fiber
• Automatic fiber end-face identifier
• Automatic fusion position rectification
• Auto select suitable fusion program
• Auto calculate fusion loss
• Small volume and light weight to be carried conveniently
• Alternating /Direct Current available to fit all occasions
• Screen menu for simple operation
• Concave windshield to work at the wind speed of 15m/s
Specifications:

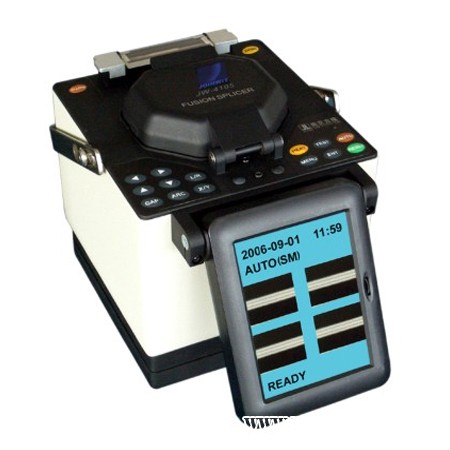

| Type | JW4105 |
| Applicablefibers | SM MM DS NZDS |
| Fiber cleaved length | 8-16 mm |
| Fiber diameter | Cladding diameter:80-150µm;Coating diameter:100-100µm |
| Fiber Count | Single |
| Fiber aligning method | Core aligning |
| Return loss | >60dB |
| Actual average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS |
| Splicing mode | Auto |
| Typical splicing time | 9 sec, with standard SM fiber |
| Splicing mode | 12 (templet), 188(user) |
| Tube typical heating time | 30 sec |
| Protection sleeve length | 60mm, 40mm |
| Storage of splice result | 5000 results, 3 parameter per result |
| Tension test | 2N |
| Fiber magnification | 400X (X or Y view), 200X (X and Y view) |
| Electrode life | 2500 |
| No. of splice/heating with battery | Typical 130 cycles |
| Image change over | The fiber image can be turned over |
| Display screen | 5 inch color LCD monitor |
| Terminal | RS232 |
| Power Supply | AC 100-240V with AC adapter inner Li-battery (6600mAH) |
| Operating condition | 0-5000m above sea level, -10-50ͦ° Max wind velocity of 15m/s |
| Dimension | 150m |
