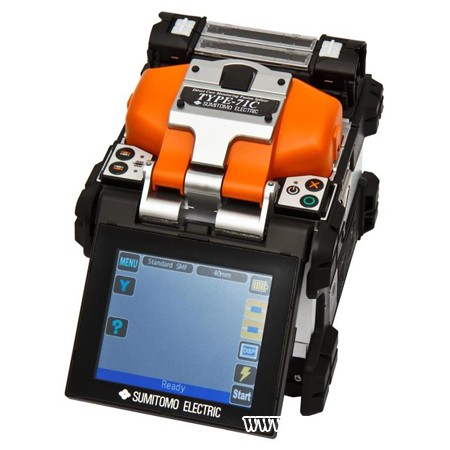

• Sumitomo T-71C fusion splicer
• Durable, light and extremely fast, this core aligning fusion splicer is an installers perfect in-field companion
• Any ugrades or extras can be downdloaded with an internet connection
• Large intuitive touch screen display provides help videos and seemless user control
• Suitable for primary coated fibre, semi-tight and loose buffer fibre
Features Splicer Sumitomo T-71C
• Downsized by 43% from conventional model
• 2.1kg weight with battery
• Ultra fast splicing(7sec.)
• Ultra fast heating(28sec.)
• G.657 fiber auto splicing function
• IP52 rating and 76cm drop on 5 faces
• Automatic arc calibration
• Touch screen operation
• Universal clamp for 250µm,900µm tight and loose buffer fiber
• User selectable heater clamp operation
• Support bi-directional splicing operation
• Equipped with onboard training vedio
• Upgrades software via internet
Specification Splicer Sumitomo T-71C
|
Items |
TYPE-71C+ |
|
|
Optical |
Material |
Silica glass |
|
Fibre count / Profile types |
Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), EDF |
|
|
Fibre diameter |
Cladding diameter: 80µm~150µm, |
|
|
Cleave length |
5~16mm with coating clamp |
|
|
Standard |
Splice loss |
SMF: 0.02dB, MMF: 0.01dB, |
|
Splicing time |
6 seconds (SM G.652 Quick Mode), |
|
|
Heating time |
14 seconds (Slim 60mm 0.25 Quick Mode) |
|
|
Splice & Heat cycles per battery full charge *2 |
Approx. 230 (BU-11) |
|
|
Fibre view |
Two CMOS cameras observation |
|
|
Proof test |
1,96~2,09N |
|
|
Applicable protection sleeve |
60mm, 40mm & Sumitomo Nano sleeves |
|
|
Programs |
Splicing programs |
Max. 300 |
|
Heating programs |
Max. 100 |
|
|
Functions |
Splice image capture/ |
200 images / 10,000 splice data |
|
Attenuation splicing |
0.1dB to 15dB in 0.1dB increments |
|
|
Universal clamps |
Provided, 250µm, 900µm tight & loose buffer fibre |
|
|
Reversible coating clamps |
Provided |
|
|
Dual automatic |
Provided |
|
|
User-selectable heater |
Provided |
|
|
Onboard user |
Provided |
|
|
Automatic arc calibration |
Automatically compensates for environmental condition changes |
|
|
Display of remaining |
Provided (Battery mode) |
|
|
Wireless LAN connectivity (Option) *3 |
Provided |
|
|
Remote interactive maintenance |
Provided |
|
|
Size/Weight |
Size |
120(W) × 154(D) × 130(H) mm |
|
Weight |
1.8kg (without battery) |
|
|
Monitor |
4.1" touch screen color LCD display |
|
|
Terminals |
DC output |
DC 12V (for JR-6) |
|
USB port |
USB 2.0 (mini-B type) |
|
|
Storage media |
SD / SDHC memory card |
|
|
Power supply |
AC input |
AC 100~240V, 50/60Hz (ADC-1430S) |
|
DC input |
DC 10~15V |
|
|
Battery pack |
Li-ion 11.1V, 4,600mAh (BU-11) |
|
|
Operating condition |
Altitude:0~6,000m, |
|
|
Storage condition |
Temperature: -40~+80 centigrade, |
|
|
Electrode life *4 |
3,000 arc discharges *3 |
|
|
Software updates |
Internet |
|
