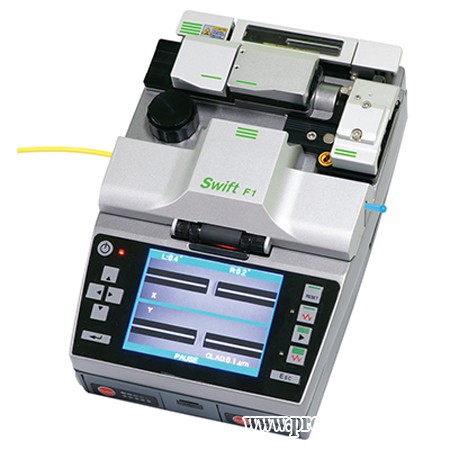

The Swift F1 is the highly sophisticated and integrated clad alignment fusion splicer which has been designed to perform the major 5 multifunctional features systematically: heating stripping cleaning cleaving splicing and sleeving. The Swift F1 has been designed for fusion splicing and splice-on connector (Swift Connector) of FTTH network applications. The structural and complementary features of Swift F1 have been applied to the design of Swift Connectors to resolve the problems of mechanical connectors in past: low quality weak durability and high maintenance cost. Swift F1 has turned around the way that the connectorusers who were used to thinking previously as from the installation and maintenance costs of splice-on connector had been more expensive than a mechanical connector to more cost effective than mechanical connector purchasing cost of splice-on connector. TheSwift F1 is a versatile fusion splicer which can perform all kinds of FTTH fusion splicing for the ordinary 0.25mm 0.9mm 2mm~3mm cable indoor cable and others splicing connectors.
SPECIFICATIONS Ilsintech Swift F1
| Category | Description |
| Fiber alignment | Fixed V-Groove(Clad to Clad) |
| Applicable type of fibers |
0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0mm Indoor cable
|
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 125㎛, Coating diameter: 250, 900㎛ |
|
Fiber setting and cleaved length
|
7.0mm |
| Splicing modes | Splice mode: 100, Heater mode: 50 |
| Typical Splice Loss | SM: 0.03dB, MM: 0.02dB, DS: 0.06dB, NZDS: 0.06dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec (Standard SM, SM-SM mode) |
| Splice loss estimate | Available |
| Sleeve heating time | 30sec(0.9mm fiber), 70sec(indoor, 3.0mm cable), 80sec(Connector) |
| Applicable protection sleeve | 40mm, 60mm, 32mm or 28mm Connector |
| Storage of splice result | The last 2,000 results to be stored in the internal memory. |
| Tension test |
1.96N
|
| Operating condition |
Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95%
|
| Dimension |
136(W)ｘ203(L)ｘ86(H)mm
|
| Weight | 1.35kg(Including battery 1.65kg) |
| Viewing method and display | Two CMOS cameras and 3.5-inch color LCD monitor |
| Fiber view and magnification | X/Y : 170X/190X |
| Power supply | DC Lithium polymer battery(DC 14.8V, 1650mAhｘ2), 100 ~ 240V AC Adapter |
|
No. of splice cycles with battery
|
Typical 120 cycles |
| Electrode life | More than 2,500 times |
| Terminals | USB |
