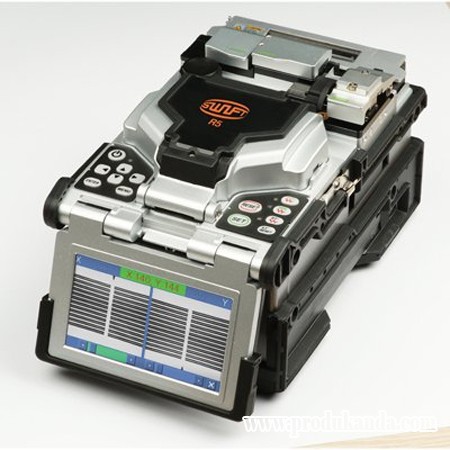

The Swift R5 has an ergonomic design that enables the user to complete all five processes of optical fiber splicing (stripping cleaning cleaving splicing and sleeving) quickly and conveniently. The All In One design eliminates the need for a large work space of a traditional fusion splicer design that uses all of the prep tools (manual stripper cleaver alcohol bottle) separately. Also the automatic thermal stripper conveniently strips 250um and 900um without scratching the fiber that is typical when using hand held mechanical fiber strippers. This in turn reduces the chances of failure that may be caused by the scratches introduced when using mechanical strippers.
Features Splicers Ilsintech Swift R5• Integrated to All In One
• Rugged Design Against Shock, Dust, Rain
• Long Battery Life more than 320times Full-Cycles
• Dual Sleeve Heater
• No Scratches on Bare Fiber by Heating Stripping
• Navigational Touch Screen with 4.3 Color Monitor
• Attached Sleeve Loader
• Compatible for SOC Connector (Option)
Specifications Splicers Ilsintech Swift R5
|
Category
|
Description
|
| Fiber alignment |
Fixed V-Groove(Clad to Clad)
|
| Applicable type of fibers |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
|
| Fiber count | Single fiber, 2~12 fiber |
| Applicable fiber dimensions |
Single: Cladding diameter 125㎛, Coating diameter 250, 900㎛
Ribbon: Cladding diameter 125㎛, Ribbon fiber thickness 0.27 to 0.32mm
|
|
Fiber setting and cleaved length
|
8mm |
| Splicing modes | Splice mode: 100, Heat mode: 50 |
| Typical Splice Loss | SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB |
| Return Loss | > 60dB |
| Splicing Time | Typical 20sec with standard SM(ITU-T G.652) |
| Splice loss estimate | Available |
| Sleeve heating time | 30sec, 50sec |
| Applicable protection sleeve | 40, 60mm(fiber) |
| Storage of splice result | The last 10,000 results to be stored in the internal memory.(Image 10,000 results) |
| Tension test |
2N / 4,4N(Option)
|
| Operating condition |
Altitude: 5,000m above sea level, Temperature: -10℃~50℃,Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95%
|
| Dimension |
142(W)ｘ225(L)ｘ132(H)mm(Including rubber)
|
| Weight | 2.5kg(Including battery 3.2kg) |
| Viewing method and display | Two CMOS cameras and 4.3-inch color LCD monitor with touch panel |
| Fiber view and magnification | 50X |
| Power supply | DC Lithium polymer battery(DC 14.8V, 8400mAh), 100~240V AC Adapter |
|
No. of splice cycles with battery
|
320cycle |
| Electrode life | More than 1,000 times |
| Terminals | USB, External power(DC 12V Available for car cigar jack) |
