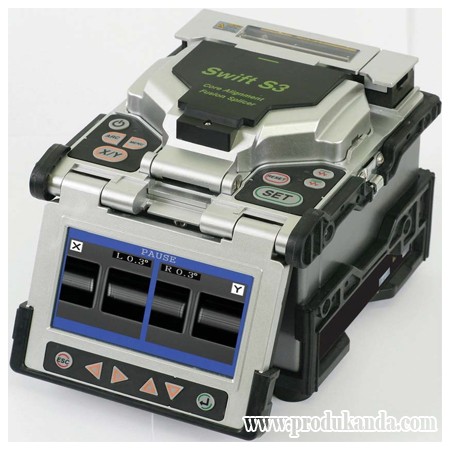

Features Splicers Ilsintech Swift S3
• BSNL TSEC Approved
• Powerful Battery with Large Capacity of 250 Cycles
• Dual Sleeve Heater
• 4.3” Color LCD Monitor with Touch Panel
• Splice Time: 9 sec, Heat Time: 26 sec
• 2000 Splice Data Storage Memory with Image
Specifications Splicers Ilsintech Swift S3
| Alignment method | IPAS core-to-core alignment (Image Pattern Analysis Alignment System) |
| Applicable Fibers | SM (ITU-T G.652, ITU-T G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), EDFA, EI980, different types (SM/MM) |
| Coating | 80 ~ 150 µm |
| Buffer covering | 100 ~ 1000 µm |
| Fiber Cleave Length | 8 ~ 18 mm – for fiber in buffer covering 250 µm 16 mm – for fiber in buffer covering 900 µm |
| Average Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB |
| Return loss | < 60 dB |
| Splicing and heating time (typical) | 9 sec for SM fiber 26 sec with sleeve heating (60 mm) |
| Programs | splice: 100 modes heating tube: 50 modes |
| Internal Memory | last 2000 results (100 images) |
| General Characteristics | |
|---|---|
| Interface | USB, RCA, ext. power |
| Power Supply | battery 14.8 V power adapter ~100-240 V |
| Additional Power Supply | DC power supply 12 V and from cigarette lighter |
| Battery splice/heat cycles | 250 cycles (lithium-polymer battery) |
| Electrode lifetime | > 2000 operations |
| Mechanical Tension Test | 2.0 N or 4.4 N |
| Display | 2 CMOS cameras / 4.3'' color LCD touchscreen |
| Fiber display and magnification | for X & Y view: 300X for XY view: 170X |
| Operation & Storage | |
| Operation Altitude | 0 ~ 5000 m |
| Operation Conditions | from –10 to +50°C @ RH up to 95% |
| Storage Conditions | from –40 to +80°C @ RH up to 95% |
| Protection Systems | wind protection up to 15 m/s protection from rain, dust, stress |
| Dimensions & Weight | |
| Dimensions (w × d × h) | 138 × 160 ×135 mm (including display) |
| Weight | 2.3 kg (with battery) |
