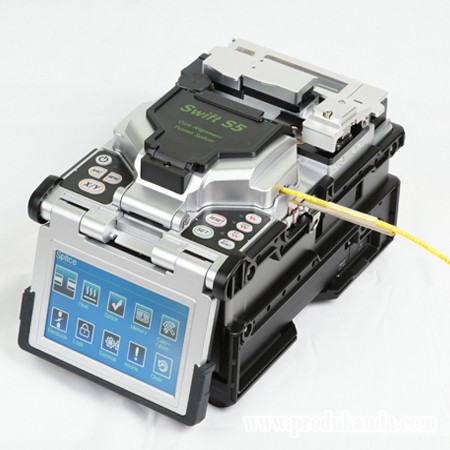

Features Splicers Ilsintech Swift S5
• All-In-One Integrated Unit (Stripping, Cleaning, Cleaving, Splicing & Sleeving)
• Fiber Stripping by Motorized Automatic Thermal Stripper
• Powerful Long Battery Life with more than 320 Cycles
• Dual Sleeve Heater
• Splice Time: 9 sec, Heat Time: 20 sec
Specifications Splicers Ilsintech Swift S5
| Category | Description |
| Fiber alignment | IPAAS core to core alignment(Image pattern analysis alignment system) |
| Applicable type of fibers |
SM(ITU-T G.652 & G.657), MM(ITU-T G.651), DS(ITU-T G.653),
NZDS(ITU-T G.655) GI EDFA, EI980,
Splicing available with different type fiber(SM/MM)
|
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 80 ~ 150㎛, Coating diameter: 100 ~ 1000㎛ |
|
Fiber setting and cleaved length
|
250㎛ : 8~16mm, 900㎛ : 16mm(Application Holder: 8mm) |
| Splicing modes | Splice mode: 100, Heat mode: 50 |
| Typical Splice Loss | SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB |
| Return Loss | > 60dB |
| Splicing Time | Typical 9sec |
| Splice loss estimate | Available |
| Sleeve heating time | 28sec (Dual Sleeve Heating) |
| Applicable protection sleeve | 40mm, 60mm(fiber), 28mm or 32mm(connector) |
| Storage of splice result | The last 10,000 results to be stored in the internal memory.(Image 10,000 results) |
| Tension test |
2N / 4,4N(Option)
|
| Operating condition |
Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
|
| Storage condition |
Temperature: -40℃~80℃, Humidity: 0~95%
|
| Dimension |
142(W)ｘ225(L)ｘ132(H)mm(Including rubber)
|
| Weight | 2.5kg(Including battery 3.2kg) |
| Viewing method and display | Two CMOS cameras and 4.3-inch color LCD monitor with touch screen |
| Fiber view and magnification | X or Y view: 300X, X and Y view: 300X, 187X (Zoom 700X) |
| Power supply | DC Lithium polymer battery(DC 14.8V, 8400mAh), 100~240V AC Adapter |
|
No. of splice cycles with battery
|
320cycle |
| Electrode life | More than 3,000 times |
| Terminals | USB, RCA, External Power(DC 12V Available for car cigar jack) |
