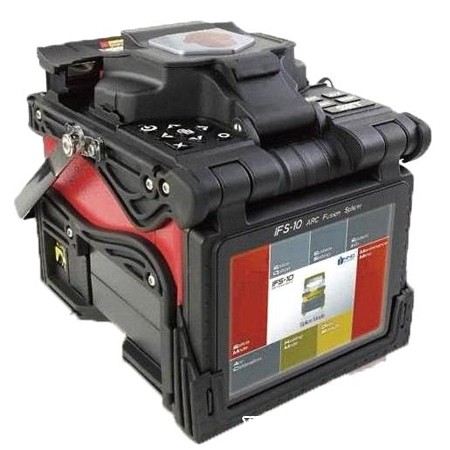

INNO IFS-10 Fiber Master Singlemode Multimode Fiber Core Alignment (New DACAS - Digital Analysis Core Alignment System) Fusion Splicer Kit
Specifications Splicers Inno IFS-10
| Splicing Method | Core alignment (DACAS:Digital Analysis Core Alignment System) |
|---|---|
| Average Loss | SM(0.02dB) | MM(0.01dB) | DS(0.04dB) | NZDS(0.04dB) |
| Return loss | >> 60 dB |
| Splice Time | 9s average SM | 7s SM Quick Mode |
| Pull Test | 1.96~2.25N (standard) |
| Electrode Lifespan | > 2,500 arcs |
| Applicable Fiber | SM(ITU-TU.652), MM(ITU-TU.651), DS(ITU-T G.653),NZDS(ITU-T G.655), G657A, G657B |
| Cleaved Length | Coating diameter < 0.25mm = 8-16mm, Coating diameter > 0.25mm = 16mm minimum |
| Coating Diameter | 100-1000um |
| Cladding Diameter | 80-150um |
| Heating Programs | Preset 10 heating modes |
| Heating Time | FP-03 typical heating time 30s |
| Protection Sleeve | 60mm, 40mm |
| Data Output | USB master device and COM |
| Splice Programs | 100 user mode |
| Splice Memory | Up to 2000 records |
| Battery | Typical full cycle 350 Splice and Heat |
| Power Supply | AC 100-240V input or DC 10-15V |
| Monitor | Color 5" LCD monitor, with tempered glass |
| Cameras | 2 CCD camera system |
| Magnification | XY style: 150 power, X/Y: 300 power |
| Fiber Display | X/Y or XY, single X.Y |
| Weight | 2.2KG (without battery) |
| Size | 155 x 130 x 143mm (excluding rubber bumper) |
| Wind Protection | The max wind speed 15m/s |
| Operating Environment | Elevation 0-5000 meters, -10~50°c, ~95% relative humidity |
| Storage Condition | Temperature -40 to 80°c, ~95% relative humidity |
INNO Instrument IFS-10 Fusion Splicer Kit Includes
• IFS-10 Fusion Splicer
• High Precision VF-78 Cleaver
• Battery Pack LBT-20
• AC Adapter/battery charger
• Power Cable
• Spare Electrodes
• Carrying Case
• Cooling Tray
• Cigarette Lighter Cable
• RS-232 Cable
• 1 Year Warranty
