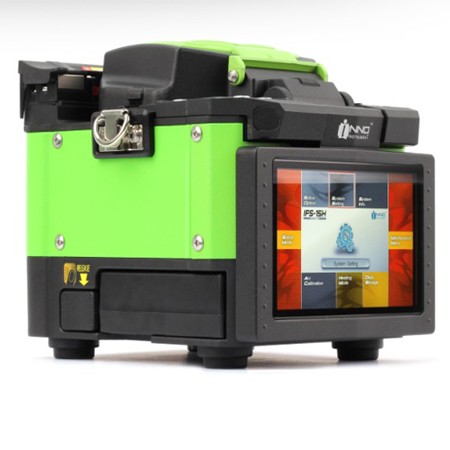

The IFS-15H is compatible with both fiber and cable splicing. INNO's newest fusion splicer technology combines the functions of both splicing fiber sizes that are popular in FTTH applications: 250µm fiber, 900µm fiber, flat cable, fiber jumper and splice-on connectors.
Features Splicers Inno IFS-10
• Compact size with 1.82kg weight (without Battery)
• Splicing Method: DACAS
(Digital Analysis Core Alignment System)
• Friendly smart GUI
• Quick optimize menu
• High precision splicing
• USB master port, easy to upgrade software
• Universal holder
• Replaceable SOC holder
• Replaceable SOC heating oven
• FTTH fitted package
Specifications Splicers Inno IFS-10
| Weight | 1.82kg without battery |
|---|---|
| Applicable Fibers | SM(ITU-TG.652)/MM(ITU-TG.651)/DS(ITU-TG.653)/NZDS(ITU-TG.655)/ITU-TG.657A/ITU-TG.657B |
| Compatible Fiber/Cable | 0.25mm/0.9mm/2.0mm/2.4mm/3.0mm/ Flat cable |
| Fiber Count | Single Core |
| Fiber Holder | Replaceable (Standard: FH-40, Optional: FH-10, FH-ST, FH-SC) |
| Fiber Diameter | Cladding:80-150μm/Coating:100-3000μm |
| Fiber Cleave Length | Diameter 250μm-1000μm: cleave length 5-13mm |
| Splice Mode | Max/Preset 64/24 |
| Typical Splice Loss | SM:0.02dB/MM:0.01dB/DS:0.04dB/NZDS:0.04dB/G.657:0.02dB (ITU-T Standard) |
| Return Loss | >>60dB |
| Splicing Time | SM Quick Mode:7second |
| Estimated Splice Loss | Yes |
| Attenuation Splicing | 0.1dB-20dB (0.1dB step) |
| Heat Oven/Heating Time | Heat Mode: 32/Heating Time (Typical): 35 second |
| Applicable Protection Sleeve Length |
10mm, 20mm, 30mm, 40mm, 50mm, 60mm |
| Results Storage | The last 2000 results |
| Mechanical Proof Test | 1.96~2.25N [Based on the fiber count] |
| Operating Condition | Operating Altitude:0-5000meter above sea level, 95% relative humidity, - 10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C, Battery: -20~ 30 °C |
| Size/ Color | 155*130*137(L*W*H)/ Eco-green |
| Display | 2 Cameras and 4.3 inch color LCD monitor (with high resolution and shock-proof protect surface) |
| Fiber View & Magnification | X/Y 300X, 180X |
| Power | DC 10-15V Power Supply |
| No of splice/Heating with Battery |
Typical 160 times(Splice + Heat) / Splice + Heat=26.7mA/per time Battery:4200mAh |
| Electrode | 3000 Times Splicing |
| Terminal | USB 2.0/RS232 (for storage and upgrading) |
| Other Functions | IFS-15H Exclusive Software /Exclusive Heat Oven-for splice-on connector/Splice and Heat mode for connectors |
INNO IFS-15H FTTx Fusion Splicer Package Includes:
• IFS-15H Splicer - IFS-15H
• High Precision Cleaver - IFS-15H
• Indoor Cable Stripper - DC300
• Coolling Tray - CG-22
• Protector PT-1 1
• Working Head Lamp - HL-1
• Battery Pack - LBT-20
• Cooling Tray - CG-22
• Power Cable - ACC-25
• AC Adapter - JS-126300-X
• Electrode - E-27 Qty2
• CD
• HCK Working Table - HCK
• HCK Carrying Case - NBX-35
• Cigarette Lighter - Cable CJ-11 1
• 1 Year Warranty
