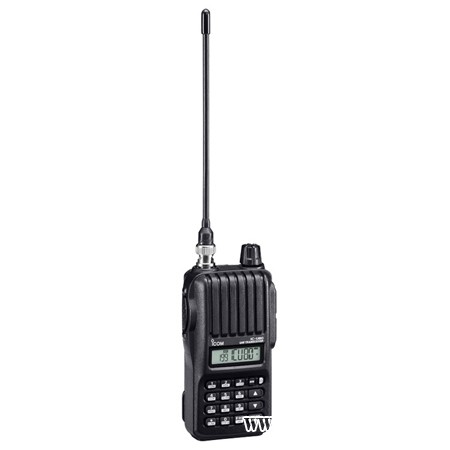

Features Icom IC-U80
• 750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
- Typical value with internal speaker.
• Powerful 4W of output power
• IP54 and MIL-STD-810 rugged construction
• Large capacity Li-Ion battery pack provides 17.5 hours* of operating time
- Typical operation. 5:5:90 duty cycle with auto power save.
• Integrated VOX function
• 200 memory channels, 1 call channel and 6 scan edges
• Built-in CTCSS and DTCS encoder/decoder
• 5 character alphanumeric display
• Priority, program, memory, skip and tone scanning
• 16 DTMF autodial memories
• Repeater lockout and busy channel lockout
• Time-out-timer
• Power save function and auto power off
• PC programmable (With optional CS-U80)
• Transceiver-to-transceiver cloning (Optional)
• Wide/narrow channel spacing
Specifications Icom IC-U80
| Frequency coverage (Differs according to version ) |
400-470MHz |
|---|---|
| Dimensions (W×H×D; Proj. not included) |
58×112×30 mm |
| Weight (approx.) |
360g with antenna and BP-264 |
| Output power (at 7.2V DC) |
4.0W, 2.0W, 0.5W (typical values) |
| Sensitivity (at 12dB SINAD) |
0.2μV typ. |
| Audio output power (at 10% distortion) |
750mW typ. (Internal SP, 16Ω load) 450mW typ. (External SP, 8Ω load) |
