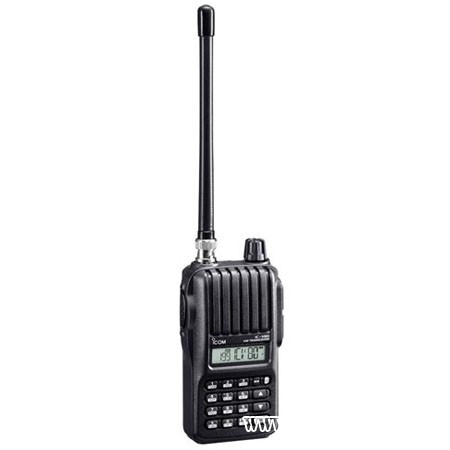

Icom radios are built tough, and the IC-V80 - Icom's most economical 2M - is no exception. This military rugged rig offers water resistance and superior protection against dust and dirt (IP54). Compact, rugged and with plenty of power, the IC-V80 is ideal for basic, on-the-go ham operations. - Supplied accessories: Battery pack, Desktop charger, Antenna, Belt clip, Manual book.

Features Icom IC-V80
• WX channel and weather alert function (USA version only)
• Program, memory, skip, priority and tone scans
• Power save function
• BNC type antenna connector
• Automatic repeater function (USA version only)
• 1750Hz tone for European repeater access (IC-V80E only)
• TOT (time out timer) setting
• Repeater lockout and busy channel lockout
• PC programmable with optional CS-V80
• Transceiver-to-transceiver cloning (Optional)
• Direct keypad frequency entry
• DTMF autodial memories
• Auto power off
• LCD backlight
• Wide/narrow channel spacing

Specifications Icom IC-V80

General
Frequency range	Tx 144–148 MHz Rx 136–174 MHz* *Guaranteed range 144–148 MHz
Type of emissions	F2D/F3E
No. of memory channels	207 (incl. 6 scan edges and 1 call)
Frequency stability	±2.5ppm (-20°C to +60°C) at 25° C
Operating temperature range	–20°C to +60°C; –4°F to +140°F
Power supply	7.2 V DC
Current drain (at 7.2V DC)	Tx 5.5W 1.4A Rx Max. audio 310mA, Internal; 180mA, external Standby 65mA Power saved 20mA
Antenna impedance	BNC (50Ω)
Dimensions (proj. not incl.)	58(W)×112(H)×30(D) mm 29/32(W) × 4313/32(H) × 13/16(D) in
Weight (approx.)	360 g; 12.7 oz (with BP-264 and Ant.)

Transmitter
Output power (at 7.2 V DC)	5.5 W (High) 2.5 W (Mid) 0.5 W (Low)
Spurious emissions	Less than –60 dB
Max. frequency deviation	±5.0 kHz/±2.5 kHz (wide/narrow)
External mic. connector	3-conductor 2.5 (d) mm (1/10″) / 2.2 kΩ

Receiver
Sensitivity	0.14 µV (typ.; at 12dB SINAD)
Squelch sensitivity	0.1 µV (typ.; at threshold)
Selectivity	70dB/50dB typical (wide/narrow)
Intermodulation	70dB/65dB typical (wide/narrow)
Spurious and image rejection	75dB (typical)
Audio output power (at 10% distortion)	450mW with an 8Ω load
External speaker connector	3-conductor 3.5 (d) mm (1/8″) / 8Ω
