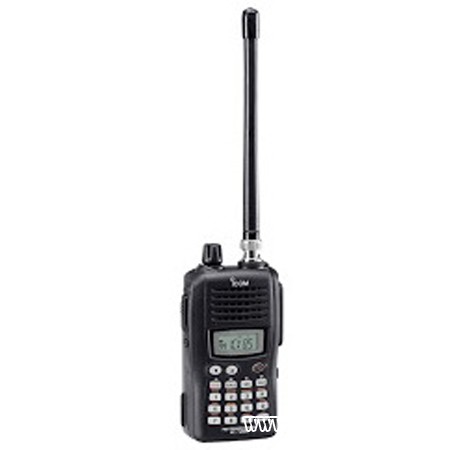

The Icom IC-V85 offers sophisticated 2 meter performance in a stylish package. Enjoy up to 7 watts of output. Extended receive is 136 to 174 MHz. Enjoy built-in CTCSS/DTCS Encode and Decode. 107 memory channels are featured including 6 scan edge and 1 call. Multiple scan types are available. There are also 16 DTMF memory channels. Other enhancements include:  weather channel alert (USA version), backlit alpha display, backlit keypad, repeater lock-out, auto-repeater function, time-out timer and auto power off. There is also a cool pager function available when the optional UT-108 is installed.

Features Icom IC-V85
• 107 Memories
• Wideband Receive
• Three RF Levels 7/4/0.5W
• Encode/Decode Built In
• Optional Pager/DTMF Decode (UT-108)
• Pager Function Option
• Ergonomic Controls

Specifications Icom IC-V85

General
Frequency coverage (unit : MHz):	Version Tx Rx (Working range) USA 144–148 136–174*1 Europe 144–146 136–174*2 Guaranteed range *1 144–148MHz, *2 144–146MHz
Mode	FM
No. of memory Ch.	107 (incl. 6 scan edges and 1 call)
Operating Temp. range	–10°C to +60°C ; +14°F to +140°F
Frequency stability	±2.5ppm (–10°C to +60°C)
Power supply requirement	BP-226/BP-227 or 11.0V ± 15% (External DC in)
Current drain (at 7.2V DC)	Tx High (7W) 2.6A Rx Max. audio 250mA   Stand-by 80mA   Power save 30mA
Antenna impedance	50Ω (BNC)
Dimensions (W×H×D) (Projections not included)	56 × 110 × 34.4 mm; 27⁄32× 411⁄32× 111⁄32 in
Weight (approx.)	310g; 12.5oz (with BP-227 and Ant.)

Transmitter
Output power (at 7.2V)	7.0/4.0/0.5W (High/mid/low)
Spurious emissions	Less than –60dBc
Max. freq. deviation	±5.0kHz
External microphone connector	3-conductor 2.5(d)mm (1⁄10″) /2.2kΩ

Receiver
Intermediate freq.	46.35MHz/450kHz (1st/2nd)
Sensitivity	Less than 0.2μV (at 12dB SINAD)
Squelch sensitivity	Less than 0.16μV (threshold)
Selectivity	More than 55dB
Spurious and image rejection	More than 60dB
Intermodulation	More than 55dB
Audio output power	More than 300mW with an 8Ω load
Ext. speaker connector	3-conductor 3.5(d) mm (1⁄8″) /8Ω
