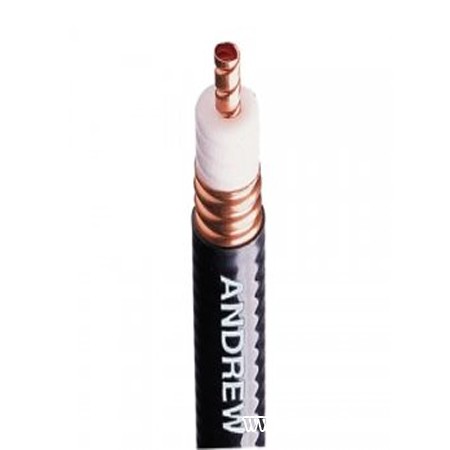

Kabel Andrew VXL5 50A 7/8 inch

Cable Ordering Information:
• Standard Cable : 7/ 8 " Standard Cable, Standard Jacket VXL5-50
• Fire Retardant Cable : 7/ 8 " Fire Retardant Jacket ( CATVR) VXL5RN-50
• Low VSWR Cables : 7/ 8 " Low VSWR, specify operating band VXL5P-50-( * * )
• Jumper Cable Assemblies - See page 584

Characteristics:

Electrical
• Impedance, ohms : 50 ± 1
• Maximum Frequency, GHz : 4.9
• Velocity, percent : 88
• Peak Power Rating, kW : 90
• dc Resistance, ohms/ 1000 ft ( 1000 m)
- Inner : 0.82 ( 2.70)
- Outer : 0.36 ( 1.19)
• dc Breakdown, volts : 6000
• Jacket Spark, volts RMS : 8000
• Capacitance, pF/ ft ( m) : 22.6 ( 74.2)
• Inductance, ¼ H/ ft ( m) : 0.06 ( 0.197)

Mechanical
• Outer Conductor : Copper
• Inner Conductor : Copper Tube
• Diameter over Jacket, in ( mm) : 1.08 ( 27.5)
• Diameter over Copper Outer Conductor, in ( mm) : 0.98 ( 24.9)
• Diameter Inner Conductor, in ( mm) : 0.371 ( 9.42)
• Minimum Bending Radius, in ( mm) : 5 ( 125)
• Number of Bends, minimum ( typical) : 15 ( 40)
• Bending Moment, lb-ft ( N• m) : 12 ( 16.3)
• Cable Weight, lb/ ft ( kg/ m) : 0.29 ( 0.43)
• Tensile Strength, lb ( kg) : 225 ( 102)
• Flat Plate Crush Strength, lb/ in ( kg/ mm) : 80 ( 1.4)
