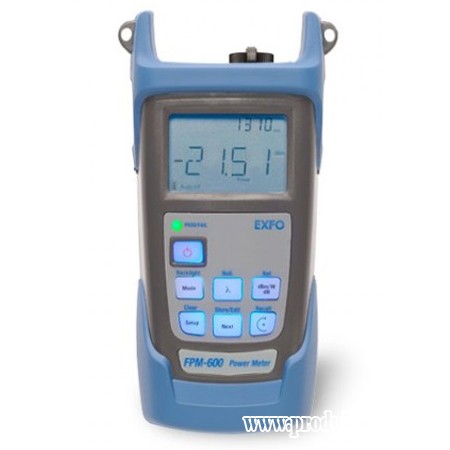

The highly versatile FPM-600 Power Meter is the ideal tool for link and system qualification. Thanks to its memory capacity of 1000 data items and converter software, it facilitates data management and enables data transfer to a PC via USB connection. The FPM-600 features a green/red LED indicator that gives you a pass or fail test verdict according to the thresholds you have defined.
Features
• Adapts to all network types: LAN, CWDM, DWDM, etc.
• Error-free, time-saving features: automatic wavelength recognition, and no offset nulling required
• High accuracy, wide dynamic range and high power measurement capability (up to 26 dBm)
• User-configurable pass/fail thresholds with LED indicator
Applications
• Optimized for CWDM power measurement
• Link-loss characterization and LAN/WAN certification
Specifications:
| Model | FPM 602 | FPM 602X |
| Detector | Ge | GeX |
|
Power range (dBm)
|
10 to -70 | 26 to -55 |
| Wavelength range (nm) | 800 to 1650 | 800 to 1650 |
| Calibrated wavelengths (nm) | 800, 820, 830, 840, 850, 860, 870, 880, 910, 980, 1270, | Same calibrated wavelengths as the FPM-602, plus 1060 |
| 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, | ||
| 1390, 1410, 1430, 1450, 1460, 1470, 1480, 1490, 1500, | ||
| 1510, 1520, 1530, 1540, 1550, 1560, 1570, 1580, 1590, | ||
| 1600, 1610, 1620, 1630, 1640, 1650 | ||
| Power uncertainty | ±5 % ± 0.1 nW | ±5 % ± 3 nW |
| Resolution (dB) | ±0.01 (10 dBm to –60 dBm) | ±0.01 (26 dBm to –45 dBm) |
|
Automatic offset nulling
|
Yes | Yes |
| Display units | dB, dBm, W | dB, dBm, W |
| Tone detection | 270 Hz, 1 kHz and 2 kHz | 270 Hz, 1 kHz and 2 kHz |
| Auto-switching | Yes | Yes |
| Warm-up period (min) | 0 | 0 |
| Data storage (items) | More than 1000 | More than 1000 |
| Battery life (hours) (typical) | 72 | 72 |
| Warranty and recommended recalibration interval (years) | 3 | 3 |
