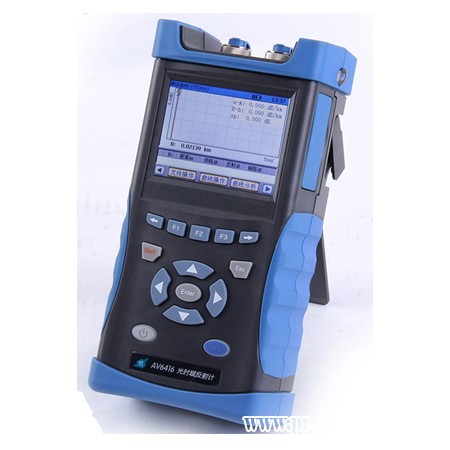

AV6416 Palm OTDR Features:
• Handheld?lightweight and convenience for carrying
• Visible fault locating (VFL)
• Advanced anti-reflective TFT LCD, visible clearly in field
• 1.6m extra-short event dead zone
• 0.25m high resolution, 65535 sampling points
• Fast auto measurement, one-button operating
• Double USB interfaces, supporting USB stick and direct cable download to PC via Active Sync
• Supporting Bellcore GR196 file format in writing or reading
• WinCE operation system, double operating interface of Chinese and English
• Built-in lithium battery with high capacity for over 10 hours of operating life
• Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning
• Unique function of updating system on-line, returning to factory is unnecessary
Specifications:
|
Main OTDR Modules |
AV6416 |
|
| Center wavelength | 1310nm/1550nm ±20nm |
|
| Type of optical fiber | SMF | |
| Dynamic Range1 | 28/26dB | |
| Distance Measurement Accuracy | ±(1m + sample space + measurement distance×0.003%) | |
| Event Dead Zone2 | ≤1.6m | |
| Sampling Resolution | 0.25 , 0.5 , 1 , 2 , 4 , 8 , 16m | |
| Distance Range | 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256km | |
| Pulse width | 10 , 30 , 80 , 160 , 320 , 640 , 1280 , 5120 , 10240ns | |
| Loss threshold | 0.01dB | |
| Sampling points | Up to 65k | |
| Linearity | 0.05dB/dB | |
| Memory capacity | 800 traces | |
| Group refractive index setting | 1.00000 - 2.00000 (0.00001 steps) | |
| Display | Color LCD(touch screen) | |
| Interface | USB,Min-USB | |
| ptical Connector | FC/UPC (universal connector) | |
| VFL | 650nm ± 10nm,2mW(typical);CW/1Hz | |
| Language | User selectable : simplified Chinese, English, etc.. |
|
| Power Supply | DC:15V to 20V(3A),(AC adapter 100?240V, 50/60Hz,1.5A), Built-in Lithium battery:4400mAh,7.4V,operating time≥10 hours3 |
|
| Dimensions | 210×100×60(mm) | |
| Weight | 1 kg Approx. | |
