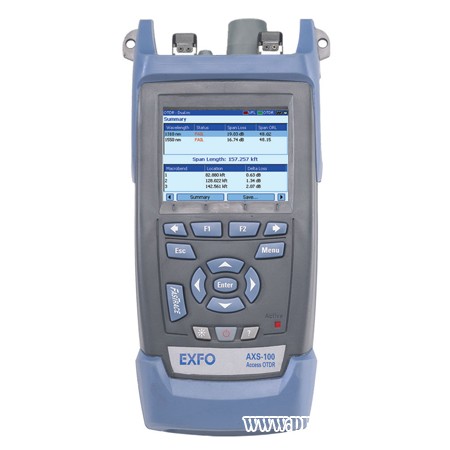

EXFO’s AXS-100 Access OTDR combines the industry’s leading OTDR technology with power meter functionalities in one powerful handheld unit. Optimized for point-to-point testing of passive optical networks (PON) within FTTx architectures, it offers several wavelength configurations and a wide range of options, for first-class flexibility and full coverage of short-haul OTDR test applications.

Designed for singlemode OTDR troubleshooting, the AXS-100 features an in-service PON troubleshooting option. It offers the 1310 and 1550 wavelengths on one port, and filtered 1625 nm on the other port, with respective dynamic ranges of 29, 28 and 28 dB.

Features Exfo AXS-100
• Wavelengths: 1310/1550/1625 nm
• Dynamic range: 29/28/28 dB
• In-service PON troubleshooting using 1625 nm port
• Battery autonomy: 8 hours

Applications
• FTTx last-mile in-service troubleshooting
• Point-to-point link testing
• CATV network testing
