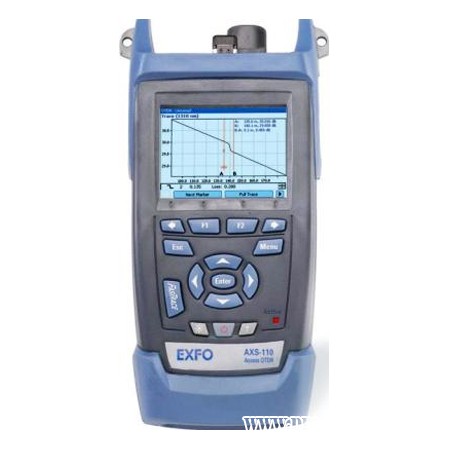

EXFO's AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between patchpanels within a data center or in-building cabling, where events are usually closely spaced.

Multimode and Singlemode Flexibility
The AXS-110 combines singlemode and multimode functionalities, ideal for premises, private and enterprise network testing. Test multimode fiber within premises, or singlemode fiber between premises—all with a single OTDR unit—and maximize your return on investment.

The AXS-110 comes in two models:
• AXS-110 All-Fiber OTDR
  Combining singlemode and multimode capabilities for enterprise, campus and access networks, this model offers the 850, 1300, 1310 and 1550 nm wavelengths, with respective dynamic ranges of 24, 25, 32 and 30 dB.

• AXS-110 Multimode OTDR
  Optimized for enterprise testing on both 50 and 62.5 µm multimode fiber, this model offers the 850 and 1300 nm wavelengths, with respective dynamic ranges of 24 and 25 dB.

Key Features
• FasTrace function: one-touch testing for top user-friendliness
• 8-hour power autonomy
• USB port (memory-stick compatible) for easy data transfer
• Large internal memory (up to 500 results)
• Transflective color display for viewing clear results under bright sunlight
• Superior automated analysis for a better, easier and faster diagnosis
• Automatic pass/fail analysis and macrobend locating
