OTDR JDSU MTS-6000

Harga :

CALL

Merk :

JDSU

Pembelian Minimal :

1 Unit

Pembelian Maksimal :

10 Unit

Pengiriman :

1 hari sejak pembayaran

Lokasi :

DKI Jakarta - Jakarta Selatan

Dilihat :

388 Kali

Update Terakhir :

03-06-2015 14:58

Dapatkan Spesifikasi Harga OTDR JDSU MTS-6000 Produk Terbaik dari CV. MULTIARYA Distributor Alat Instrument surveying, Alat komunikasi, GPS & Geological, Theodolite, Splicer Fussion.

Detail Produk

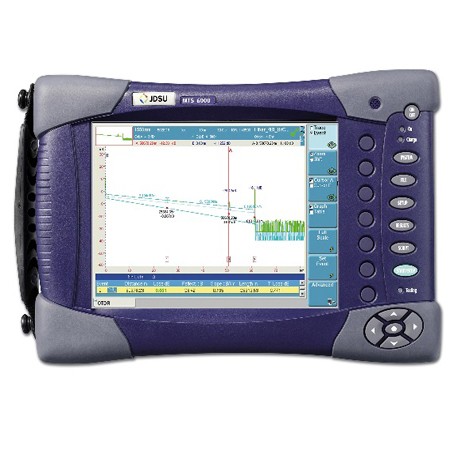

JDSU MTS-6000A is a compact and lightweight test platform designed for all phases of network lifecycle from the installation to the maintenance of fiber networks. Modular in design, the MTS-6000A offers an extensive portfolio of test functionality for multiple network layers.

Features JDSU MTS-6000
• Lightweight platform: only 2.4kg/5.3 lbs.
• Large 8.4 inch transreflective TFT color display improves viewing under any conditions.
• Intuitive graphical user interface with touchscreen option.
• Extended battery life using smart Lithium ion cell.
• Connection checker with VFL, power meter, and Loss Test Set and video inspection scope options.
• Built-in optical talkset option for communicating along the fiber.
• Unique automatic bi-directional analysis function available to save up to 50% test time for OTDR, IL, and ORL measurements.
• Fast data transfer via USB, Ethernet port and 1Gb extended memory option.
• Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100)12 and FiberCable (OFS-200)13.

Applications
• Fault Locator.
• OTDR and power level testing.
• CWDM/DWDM testing.
• PMD, Spectral Attenuation Profile and Chromatic Dispersion (CD) testing.
• Insertion Loss (IL) and Optical Return Loss (ORL) testing.
• FiberComplete™ automated bi-directional OTDR, Insertion Loss and ORL testing.

Specification JDSU MTS-6000

Central wavelength	Dynamic range	Event dead zone	Attenuation dead zone
Short range multimode (SRL)	850/1300 ±20nm	24/24dB	0.5m	2m
Short range multimode and singlemode (SRL)	850/1300 1310/1550/ 1625 ±20nm	24/24/ 40/38/37 dB	0.5 m (multimode) 0.8m (multimode)	5 m (multimode) 8 m (multimode)
Very short range singlemode (VSRe)	1310/1550 ±20nm	32/30dB	2m	8m
Short range singlemode (SRe)	1310/1550 ±20nm	34/32dB	3m	25m
Medium range singlemode (MR)	1310 ±20nm 1490 ±15nm 1550 ±20nm 1625 ±10nm	40 dB 40 dB 38 dB 37 dB	0.8m	4m
Long range singlemode (LR)	1310 ±20nm 1490 ±15nm 1550 ±20nm 1625 ±10nm	43 dB 40 dB 41 dB 41 dB	0.8m	4m
Very long range singlemode (LR)	1310 ±20nm 1383 ±2nm 1490 ±15nm 1550 ±20nm 1625 ±10nm	45 dB 44 dB 42 dB 43 dB 43 dB	0.8m	4m
Ultra long range singlemode (UHD)	1310/1550 ±20nm 1625±10nm	45.5/50dB 45.5dB	4.5m	15m
