Functions:
• Optical Time Domain Reflectometer ( OTDR )
• Optical Laser Source ( LS ) and Power Meter ( PM )
• FTTx ready Passive Optical Network ( PON ) testing
• Maximum 4 wavelength, single mode and multimode
• 25dB to 43dB dynamic range
• Fiber inspection probe

Productivity:
• 10 seconds boot-up time
• 9 hours long battery operation with power management
• Context sensitive help
• Palm sized and feather weight ( 1.5lb / 0.7kg )
• Bright TFT LCD with shortcut key operation
• Reporting and post analysis software
• External USD ( A/B ) interfaces for firmware upgrade and file transfer

Integrity:
• High speed ( < 5sec ) automatic trace analysis
• Telcordia data format SR-4731
• Remote Fiber Test System ( RFTS ) support

Advantages:
• High speed trace analysis in less than 5 seconds
• User-friendly, comfort, economical and easy solution for various fiber optic measurement in network instalation,in service work or search for fiber faults
• Carrying out a measurement on fiber network of any type of transport,metro,access and FTTx networks
• 500 traces can be saved in internal memory with windows style file management system

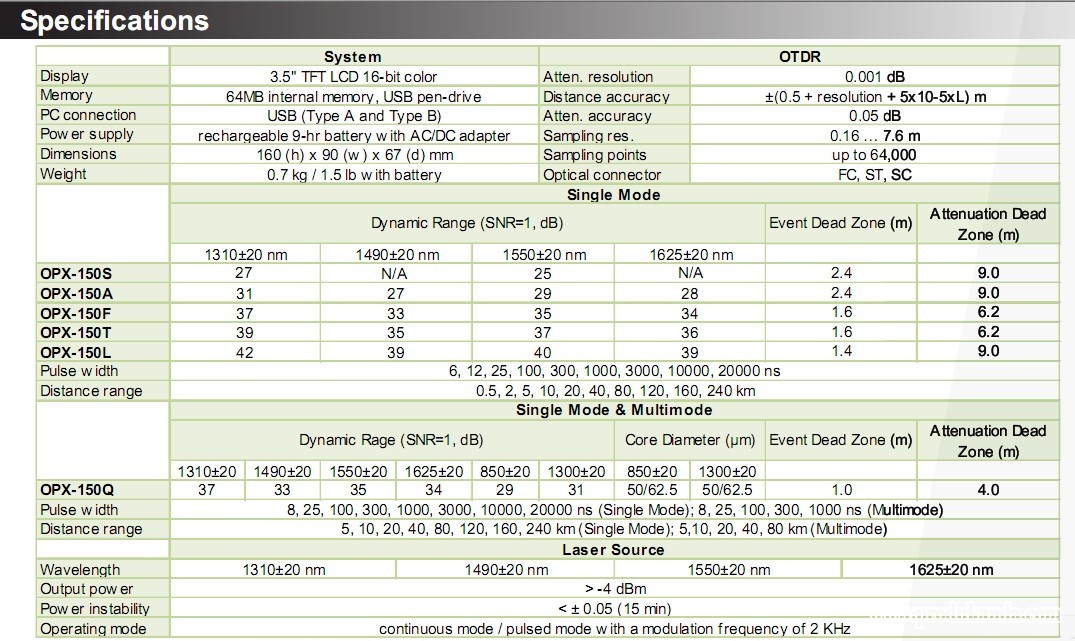

Specifications OPX-150
