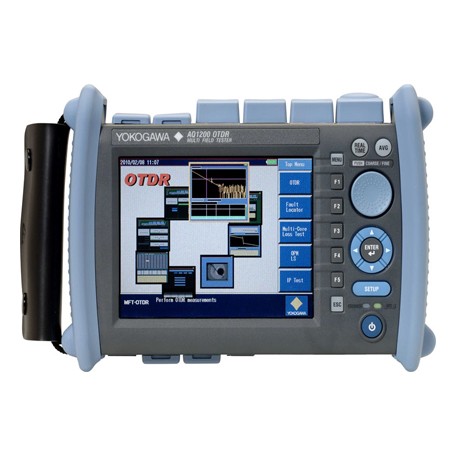

Features Yokogawa AQ1200
• OTDR that supports SM1310/1550nm with a short 80 cm event dead zone
• Quick power on for faster operations
• Able to display trace and event information at the same time
• Full auto mode for novice users and information tips for more experienced users
• Bright LCD screen for easy viewing inside buildings and outside
• Includes Fault Locator functions for fast measurements
• Supports external USB Video fiber inspection probe
Excellent Functionality and Operability
• 5.7 inch color LCD for easy viewing
• Multi-language support
• AQ7275 OTDR-like interface
• USB port for data storage
• Quick and easy data exchange with PC through USB connection
Specification Yokogawa AQ1200
|
Models |
AQ1200 |
|
|
Wavelength (nm) |
1310/1550 ± 25nm |
|
|
Distance range |
500m,1km,2km,5km,10km,20km,50km,100km,200km |
|
|
Pulse width |
3ns,10ns,20ns,50ns,100ns,200ns,500ns,1μs,2μs,5μs,10μs |
|
|
Dynamic range |
32/30 dB |
|
|
Event dead zone |
0.8m |
|
|
Attenuation dead zone |
5/5 m (typ) |
|
|
Applicable fiber |
SM (ITU-T G.652) |
|
|
Optical connector |
SC, FC, ASC |
|
|
Laser class |
1M |
|
|
Display |
5.7 inch color LCD (640x480) |
|
|
Battery operation time |
6 hours |
|
|
Interface |
USB port |
USB1.1 TYPE A x 1, TYPE B (mini) x 1 |
|
DC power |
For AC adapter |
|
|
Dimensions |
217.5(W) x 157(H) x 74(D) mm |
|
|
Mass |
Approx. 1kg (incl. Protector and internal battery) |
|
Loss test option
|
Optical Power meter |
Power meter type |
Standard(/SLT) |
High Power(/HLT) |
|
Wavelength setting |
850/1300/1310/1490/1550/1625/1650nm, 800 to 1700nm (1nm steps), or CWDM (1270 to 1610nm, 20nm steps) |
||
|
Power range |
+10 to -70dBm (CW) +7 to -70dBm (CHOP) |
+27 to -50dBm (CW) +24 to -50dBm (CHOP) |
|
|
Noise level |
0.5nW (-63dBm, 1310nm) |
50nW (-43dBm,1310nm) |
|
|
Uncertainty under standard conditions |
± 5% |
||
|
Readout resolution |
0.01 |
||
|
Level unit |
Absolute: dBm, mW, μW, nW Relative: dB |
||
|
Modulation mode |
CW, CHOP (270Hz/1kHz/2kHz) |
||
|
Average function |
1, 10, 50, and 100 times |
||
|
Stabilized Light source |
Wavelength (nm) |
1310/1550 ± 25 |
|
|
Light emitting device |
LD |
||
|
Spectral width (nm) |
<5 / <10 |
||
|
Optical output level(dBm) |
-3 ± 1 |
||
|
Level stability (dB) |
± 0.05 |
||
|
Modulation mode |
CW, 270Hz, 1kHz, 2kHz |
||
|
Applicable fiber |
SM (ITU-T G.652) |
||
|
Laser class |
1 |
||
|
Memory and logging function |
Measurement data storage: 10 to 1000 data Logging interval: 0.5, 1, 2, 5, or 10 sec |
||
Visible light source (/VLS) option
|
Optical connector |
2.5 ferrule type |
|
Optical wavelength and output level |
650nm± 20nm, -3dBm or more (peak) |
|
Modulation mode |
CHOP approx.2Hz |
|
Laser class |
3R |
Ethernet I/F (/LAN) option
|
Interface |
10BASE-T/100BASE-TX |
|
Functions |
Ping test, remote control |
