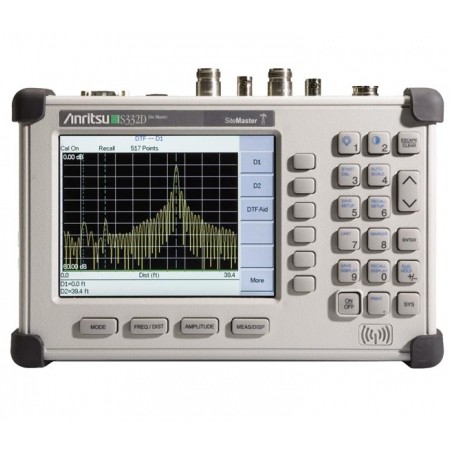

Features Site Master Anritsu S332E

Standard
• Cable and Antenna Analyzer: 2 MHz – 4 GHz
• Spectrum Analyzer: 9 kHz – 4 GHz
• Return Loss, Cable Loss, VSWR, Distance-To-Fault, Smith Chart, 1-Port Phase
• Intuitive menu-driven touch screen user interface
• USB connectivity, built-in touch screen keyboard
• Field-proven design: Four-hour battery life, rugged, compact, lightweight, daylight viewable display
• Standard three-year warranty (battery one-year warranty)

Options
• 2-port Transmission Measurements
- Internal Bias Tee
- Ethernet
- Gated Sweep
- CW Generator
• Interference Analyzer with Interference Mapping
• High Accuracy Power Meter
• Coverage Mapping, Channel Scanner, GPS, AM/FM/PM Analyzer

To keep up in today's rapidly evolving wireless communications market, you need tools that enable you to efficiently maintain legacy networks in addition to the new 3G and 4G networks now being installed. And as the market continues to expand, you're being required to service more base stations than ever before. This means completing sweeps quickly, performing calibrations instantly, and implementing fast trace naming while in the field.

The S332E Site Master does all this by combining a cable and antenna analyzer with a spectrum analyzer into a single integrated device while delivering the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu. Designed to handle the most punishing field conditions, the S332E Site Master integrated cable and antenna analyzer and spectrum analyzer dramatically enhances your productivity and transforms the traditional fix-after-failure maintenance model to one that allows you to identify and address minor problems before they become major ones.

Cable and Antenna Analyzer Highlights
• Measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Phase
• 2-port Transmission Measurement: High/Low Power
• Sweep Speed: 1 msec/data point, typical
• Display : Single or Dual Measurement Touchscreen
• Calibration: OSL, InstaCal, and FlexCal
• Bias Tee: 32 V internal

Spectrum and Interference Analyzer Highlights
• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
• Dynamic Range: > 95 dB in 10 Hz RBW
• DANL: -152 dBm in 10 Hz RBW
• Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: < ±50 ppb with GPS On

Applications
• Cable & Antenna Installation and Maintenance for wireless service providers, contractors, military, aerospace and defense, and public safety applications
• 2-port measurements of Tower Mounted Amplifiers, duplexers, diplexers, filters
• Phase Matching Cables
• Antenna Tuning
• Spectrum monitoring
• Transmitter Verification: occupied bandwidth, channel power, adjacent channel power ratio
• Interference Analysis of cellular system, land mobile radio systems, Wi-Fi
• Signal Strength Mapping
• Field analysis of 2G/3G/4G signals
• Field Strength Measurements
