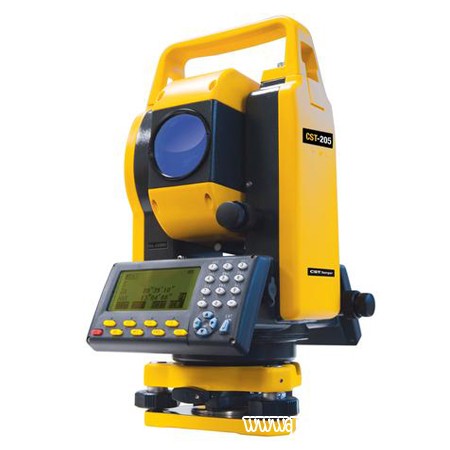

Features for the CST Berger CST205 5 Second Total Station:
• 5-second accuracy
• 15,000-point internal memory
• 5,249 foot range to single prism
• Single-axis tilt sensor
• On-board field software
• Customizable functions
• Optical plummet
• Input custom functions with softkeys
• Superior optics give clear target visibility
• RS-232 serial port for transfer and upload of data
• Calculate distance and angle offset measurement
• Performs setting out, missing line, and resection
• Dual graphic LCD display

Specifications for the CST Berger CST205 5 Second Total Station:
• Magnification: 30X
• Compensator Type: Single Axis
• Min. Focus: 4.92 ft (1.5m)
• Resolving Power: 4.0"
• Field of View: 1 Degree, 30 ft
• Angle Accuracy: 5 seconds
• Telescope Length: 150mm
• Image: Erect
• Objective Lens Aperture: 45mm
• Display: Graphic LCD, Alphanumeric, 8 Lines of 20 Characters
• EDM Accuracy (Prism/Sheet): ± (2mm+2ppm x d) mm
• Measuring Range:
- Single Prism: ± 5,249 ft (1,600 m)
- Triple Prism: ± 8,202 ft (2,500 m)
• Angle Measurement Method: Raster Incremental
• Detection - Angle Measurement: Horizontal
• Minimum Count - Angle Measurement: 1"/5" Selectable
• Angle Measurement Accuracy: 5"
• Long Vial Level Sensitivity: 30"/2mm
• Bubble Level Sensitivity: 8'/2mm
• Plummet: Optical
• Tripod Thread: 5/8-11
• Base: Separated Base
• On-board Data Collection - Memory: 15,000 points
• Battery Type: NiMH
• Weight: 25 lbs
• Dimensions: 21" x 13" x 17"
