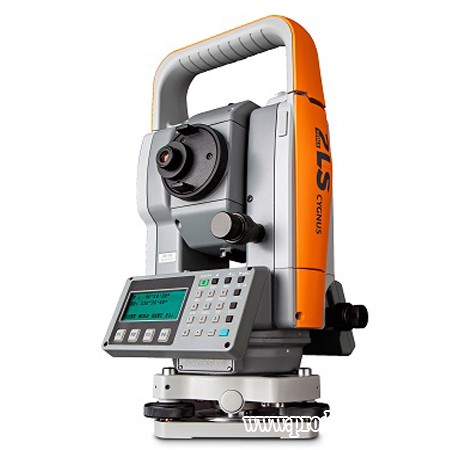

Features for the Cygnus KS-102 2-Second Reflectorless Total Station:
• 2" angle accuracy
• 1"/5" angle resolution
• 2000m single prism/200m reflectorless EDM range
• 1.1 sec. measurement time
• IP54 waterproof rating
• Approx. 23 hours of battery operation (@ 20ºC)
• Design and Quality by TOPCON, Japan

Specifications for the Cygnus KS-102 2-Second Reflectorless Total Station:

Telescope
• Magnification: 30X
• Image: Erect
• Field of view: 1°30'
• Resolving power: 3.0"
• Minimum focus distance: 1.3m

Angle Measurement
• Display resolution: 1"/5"
• Accuracy: 2"
• Axis Compensator: 1 axis +/-3"(compensation range)

Distance Measurement
• Measuring Range
--Reflectorless 200 m
--Prism 2000 m (single prism
• Accuracy
--Reflectorless (3+2 ppm x D)mm
--Prism (2+2 ppm xD)mm
• Measuring time(fine)
--Reflectorless 1.1s
--Prism 1.1s

Interface and Data Management
• Display: Graphic LCD
• Keyboard: 24 Alpha-Numeric keys
• Control Panel location: 2 sides
• Data Storage
--internal memory 24,000 pts
--plug-in memory device N/A
• Interface Serial RS-232C

Power Supply
• Battery
• operating time (20° C) Approx. 23 hours
