• 2" angle accuracy provides 1/16th of an inch accuracy at 1,000ft.
• Dual keyboards with and expanded numeric keypad for faster data input.
• Accurately measure up to 2,000m with a single prism.
• Internal data storage for up to 24,000 points.
• Single axis compensator with ±3' compensating range.
• IP54 environmental protection rating.

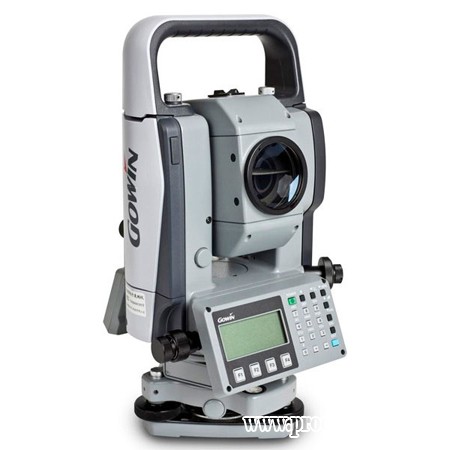

Specifications for the Gowin TKS 202 2 Second Total Station
| TELESCOPE Length 150mm Object Lens Diameter 45mm (EDM:50mm) Magnification 30x Minimum Focusing Distance 1.3m |
TILT CORRECTION Tilt Sensor Single Axis Method Liquid Type Compensating Range ±3' |
| DISTANCE MEASUREMENT * 1 prism 2,000m 3 prism 2,700m Accuracy ±(2mm + 2ppm x D) m.s.e. |
DISPLAY Display Unit 2 side Display Type Dot Matrix Graphic LCD Keyboard 24 keys |
| MEASURING TIME Fine Mode 1mm: 1.2sec (Initial 4sec) 0.2mm: 2.8sec (Initial 5sec) Coarse Mode 0.7sec (Initial 3sec) Tracking Mode 0.4sec (Initial 3sec |
BATTERY LIFE Angle & Distance Measurement 14 h Angle Measurement Only 60 h |
| ELECTRONIC ANGLE MEASUREMENT Method Absolute Reading Detecting System Horizontal Angle: 2 side, Vertical Angle: 1 side Accuracy 2" |
OTHERS Serial Signal Connection Yes Environmental Protection IP54 Internal Data Memory 24,000 pts Ambient Temperature Range -4˚F to +122˚F (-20˚C to +50˚C) Plummet Optical Only |
