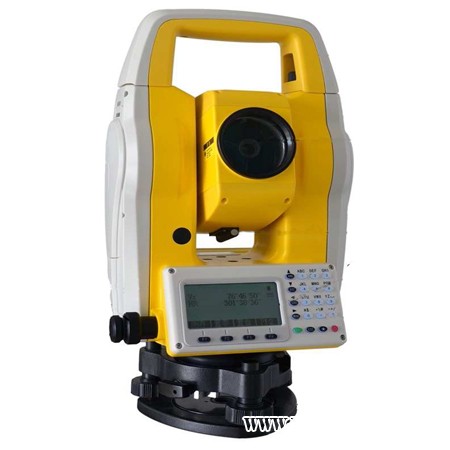

Specifications Total Station HI-Target ZTS320R
Angle Measurement
• Measurement Method: Absolute encoding
• Minimum Readout: 1″/5″/10″(0.3mgon/1.5mgon/3mgon), adjustable
• Accuracy1: 2″
Distance Measurement (with Reflector)
• Single Prism: 3000m (9,842ft) under good condition3
• Three Prisms: 6000m (19,685ft) under good condition3
• Reflective Area: 800m (2,624ft)
• Accuracy: 2 mm+2ppm
• Measuring Time (Fine/Quick/Tracking): 0.5s/1s/1.5s
Distance Measurement (without Reflector)
• Reflectorless2 Range: 350m (1,148ft)
• Single Prism: >7500m (24,606ft)
• Accuracy : 3mm+2ppm
• Measuring Time: 1.5s
Telescope
• Magnification: 30×
• Field of View: 1°30′ (2.7m at 100m)
• Minimum Focusing Distance : 1.5m
• Reticle: Illuminated
Compensator
• System: Single-axis liquid tilt sensor/Dual-axis (optional)
• Working Range: ±3′
• Setting Accuracy: 1″
Communication System
• Bluetooth
• Interface: Standard RS232, SD card4, USB pen drive, mini-B
• Internal Data Memory: Approx. 20,000 Points
• Data Format: ASCII
Operation
• Operation system: Real-time operating system
• Display: High resolution backlight, black and white display with contrast adjustment
• Graphics: 192×96 pixels/Character: 6 lines×25 characters
• Keyboard : 2 sides alphanumeric backlit crystal keyboard
Laser Plummet
• Type: Laser point, 4 brightness levels adjustment/Optical plummet (optional)
• Centering Accuracy: 1 mm (1.5m height of instrument)
Power Supply
• Battery Type: Rechargeable Li-ion battery
• Voltage/Capacity: ZBA-400: 7.4V (DC)/3000mAh
• Operating Time With ZBA-400: Optimal 16 hours5 (Continuous angle measurement every 30 seconds)/10 hours (typical)
• Measuring Times: Approx. 12000 times
Weight(including battery and tribrach)
• Approx. 5.5kg (12.1lb)
Environmental Conditions
• Operating Temperature: -20℃ to +50 ( -4℉ to +122℉)
• Storage Temperature: -40℃ to +70℃ (-40℉to +158℉)
Dust & Water Proof (IEC60529 Standard)/Humidity
• IP65, 95%, non-condensing
