• 3-second accuracy
• 10,000-point internal memory
• 1,312 foot range
• Bluetooth
• Optical plummet
• Coaxial red laser pointer
• Reflectorless
• Dual-axis compensation
• High quality Nikon optics
• Built-in Nikon Survey software
• USB high-speed data transfer port
• Up to 31 hours hot swappable Li-Ion batteries
• Water resistant and dustproof to IP-66
• Dual black and white LCD display
• Full numeric keypad
• Compact, rugged and lightweight

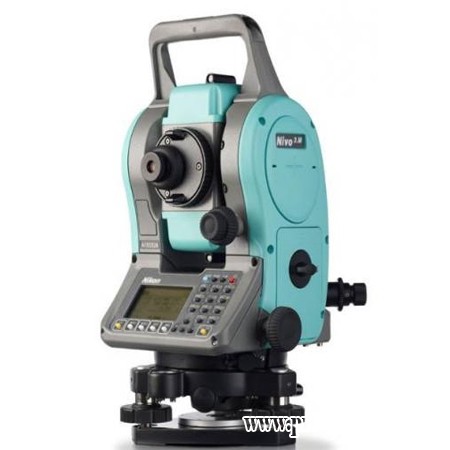

Specifications Nikon Nivo 3M 3 Second Reflectorless Total Station
|
General
|
|
| Weight | 8.0 lbs (3.6 kg) |
| Dimensions | 5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4) |
| Warranty | 2-year |
| Protection Class | IP66 (dustproof and protection against strong water jets) |
| Internal Memory | 10,000 points |
| Software | Nikon Survey |
| Tribrach | Detachable |
| Guide Light | Red LED |
|
Angle Measurement
|
|
| Measuring Method/Reading System | Absolute encoder |
| Minimum Reading | 1-second/5-second/10-second |
| Accuracy | 3-second |
| Diameter of Circle | 2.4 in (6 cm) |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | ±(3mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
| Minimum Reading | 400 m (1,312 ft) |
|
Tilt Sensor/Compensator
|
|
| Range | ±3.5 |
| Type | Dual-axis |
| Method | Liquid-electric detection |
|
Battery/Power
|
|
| Power Source | Two rechargeable Li-Ion batteries |
| Battery Life | 31 hours |
| Battery Life Alert | yes |
| Voltage | 3.8 V DC |
|
Optical Plummet
|
|
| Image | Erect |
| Magnification | 3× |
| Field of View | 5 degrees |
| Focus Range | 0.5 m (1.6 ft) to infinity |
|
Level
|
|
| Circular Bubble Vial | 10 minutes per division/(2 mm) |
| Electronic Level | Displayed on the LCD |
|
Telescope
|
|
| Length of Tube | 125 mm (4.9 in) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 50 mm EDM (2.0 in) |
| Magnification | 30x |
| Field of View | 1 degree 20 arcmin |
| Resolving Power | 3 arcsec |
| Minimum Focus Distance | 1.5 m (4.9 ft) |
| Reflectorless | yes |
|
Display and Keypad
|
|
| Type | Black and white LCD |
| Sides | Dual |
| Backlight | yes |
| Pixels | 128 x 64 pixels |
|
Temperature
|
|
| Operating | -4°F~122°F (-20°C~50°C) |
| Storage | -13°F~140°F (-25°C~60°C) |
|
Applications
|
|
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | 5,000 m (16,404 ft) |
| No Prism | 400 m (1,312 ft) |
| Reflector Sheet | 300 m (984 ft) |
|
Functions
|
|
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
|
Laser Plummet
|
|
| Class | 2 |
| Wavelength | 635 nm |
|
Interface
|
|
| Bluetooth | Class 2 |
| Pin Port | RS-232C |
