Product Highlights:
• 10,000-point internal memory
• 1,640 foot range
• Long-range Bluetooth
• Laser plummet and pointer
• USB and RS232 serial port
• Security and maintenance software
• 36-hour battery life
• Water resistant and dustproof to IP-66
• Dual graphic LCD display

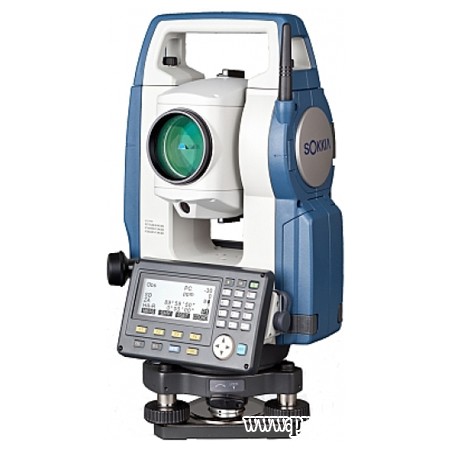

Features for the Sokkia CX 101 1 Second Reflectorless Total Station:
• 1-second accuracy
• 10,000-point internal memory
• 1,640 foot range
• Long-range Bluetooth
• Laser plummet features five levels of brightness
• Coaxial laser pointer
• USB and RS232 serial port
• Advanced security and maintenance with TSshield
• Trigger key for taking measurements quickly
• 36-hour battery life
• Water resistant and dustproof to IP-66
• Dual graphic LCD display

Specifications for the Sokkia CX 101 1 Second Reflectorless Total Station

General
Weight	12.3 lbs (5.6 kg)
Dimensions	7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm)
Protection Class	IP66 (protected against access to hazardous parts, dust-tight; protected against powerful water jets and heavy seas)
Tripod Thread	5/8 x 11 in.
Auto Shut Off	5 levels (selectable)
Internal Memory	10,000 points
Tribrach	fixed
Guide Light	green and red LED, Working range: 4.3 ft to 492 ft (1.3 m to 150 m)
Angle Measurement
Measuring Method/Reading System	coaxial phase shift measuring system
Minimum Reading	1-second/5-second
Accuracy	1-second
Distance Measurement
Unit of Measure (distance display)	m/ft/in.
EDM Accuracy (Precision)	reflectorless: (3 + 2ppm x D) mm; Reflective sheet: (3 + 2ppm x D) mm; SP/CP prism: (2 + 2ppm x D) mm
Minimum Reading	0.01 ft/ 1/8 in.
Tilt Sensor/Compensator
Range	±6 minutes
Type	dual axis liquid tilt
Battery/Power
Power Source	Li-ion rechargeable battery
Battery Life	about 36 hours
Battery Life Alert	yes
Voltage	7.2 V
Optical Plummet
Image	erect
Magnification	3x
Level
Circular Bubble Vial	10 min. per division/2mm
Electronic Level	6 arcseconds
Telescope
Length of Tube	6.7 in (171 mm)
Image	erect
Diameter of Objective Lens (Aperture)	1.8 in (45 mm)
Magnification	30x
Field of View	1 degree 30 arcmin
Resolving Power	2.5 arcmin
Minimum Focus Distance	4.3 ft (1.3 m)
Reticle Illumination	5 brightness levels
Reflectorless	yes
Display and Keypad
Type	LCD graphic display
Sides	dual
Keys	25
Backlight	yes
Pixels	192 x 80
Temperature
Operating	-4ºF to 122ºF (-20ºC to +50ºC)
Storage	-4ºF to 122ºF (-20ºC to +50ºC)
Applications
Surveying and Construction	yes
Mapping and GIS (geographic information systems)	yes
Utilities	yes
Environment Studies	yes
Geomarking	yes
Archaeology	yes
Accident Reconstruction	yes
Measurement Range (under fair weather conditions)
Single Prism	4.27 ft. to 16,400 ft. (1.3 m to 5000 m)
Triple Prism	up to 16,400 ft. (5,000m)
No Prism	1.0 ft. to 1,640 ft. (0.3m to 500m)
Mini Prism	CP01: 8,200 ft. (1.3m to 2,500m); OR1PA:1,640 ft. (1.3m to 500m)
Reflector Sheet	4.3 ft. to 1,640 ft. (1.3m to 500m)
Functions
Coordinate Measurement Point	yes
Angle and Distance Stake Out	yes
Stake Out Line	yes
Offsets	yes
Missing Line	yes
Remote Elevation	yes
Resection	yes
Area Calculation	yes
Measurement Time
Fine	0.9s (initial 1.7s)
Rapid	0.7s (initial 1.4s)
Tracking	0.3 s (initial 1.4s)
Laser Plummet
Accuracy	1 mm or less
Class	Class 2 laser
Wavelength	635nm±10nm
Laser Pointer
Class	Coaxial red laser using EDM beam
Interface
Bluetooth	communication range: up to 980 ft (300 m)
USB	8 GB USB memory stick and USB device port
Pin Port	RS232C
