• 10,000-point internal memory
• 1,640 foot range
• Long-range Bluetooth
• Laser plummet and pointer
• USB and RS232 serial port
• Security and maintenance software
• 36-hour battery life
• Water resistant and dustproof to IP-66
• Dual graphic LCD display

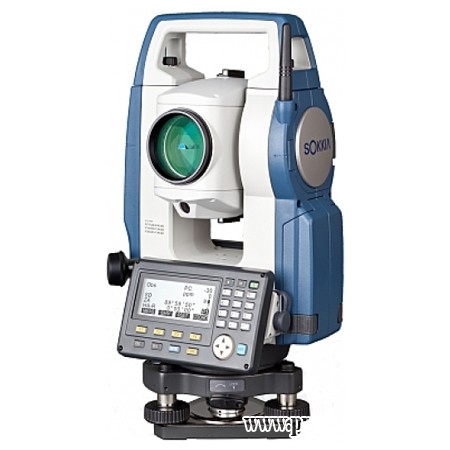

Features for the Sokkia CX 103 3-Second Reflectorless Total Station:
• 3-second accuracy
• 10,000-point internal memory
• 1,640 foot range
• Long-range Bluetooth
• Laser plummet features five levels of brightness
• Coaxial laser pointer
• USB and RS232 serial port
• Advanced security and maintenance with TSshield
• Trigger key for taking measurements quickly
• 36-hour battery life
• Water resistant and dustproof to IP-66
• Dual graphic LCD display
Specifications for the Sokkia CX 103 3-second Reflectorless Total Station
|
General
|
|
| Weight | 12.3 lbs (5.6 kg) |
| Dimensions | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Warranty | 2-year manufacturer's warranty |
| Protection Class | IP66 (protected against access to hazardous parts, dust-tight; protected against powerful water jets and heavy seas) |
| Tripod Thread | 5/8 x 11 in. |
| Auto Shut Off | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Internal Memory | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Tribrach | fixed |
| Guide Light | green and red LED, Working range: 4.3 ft to 492 ft (1.3 m to 150 m) |
|
Angle Measurement
|
|
| Measuring Method/Reading System | coaxial phase shift measuring system |
| Minimum Reading | 1-second/5-second |
| Accuracy | 3-second |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft/in. |
| EDM Accuracy (Precision) | reflectorless: (3 + 2ppm x D) mm; Reflective sheet: (3 + 2ppm x D) mm; SP/CP prism: (2 + 2ppm x D) mm |
| Minimum Reading | 0.01 ft/ 1/8 in. |
|
Tilt Sensor/Compensator
|
|
| Range | ±6 minutes |
| Type | dual axis liquid tilt |
|
Battery/Power
|
|
| Power Source | Li-ion rechargeable battery |
| Battery Life | about 36 hours |
| Battery Life Alert | yes |
| Voltage | 7.2V |
|
Optical Plummet
|
|
| Image | erect |
| Magnification | 3x |
|
Level
|
|
| Circular Bubble Vial | 10 min. per division/2mm |
| Electronic Level | 6 arcseconds |
|
Telescope
|
|
| Length of Tube | 6.7 in (171 mm) |
| Image | erect |
| Diameter of Objective Lens (Aperture) | 1.8 in (45 mm) |
| Magnification | 30x |
| Field of View | 1 degree 30 arcmin |
| Resolving Power | 2.5 arcmin |
| Minimum Focus Distance | 4.3 ft (1.3 m) |
| Reticle Illumination | 5 brightness levels |
| Reflectorless | yes |
|
Display and Keypad
|
|
| Type | LCD graphic display |
| Sides | dual |
| Keys | 25 |
| Backlight | yes |
| Pixels | 192 x 80 |
|
Temperature
|
|
| Operating | -4ºF to 122ºF (-20ºC to +50ºC) |
| Storage | -4ºF to 122ºF (-20ºC to +50ºC) |
|
Applications
|
|
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | 4.3 ft to 13,120 ft (1.3mto 4,000m) |
| Triple Prism | up to 16,400 ft (5,000m) |
| No Prism | 1.0 ft to 1,640 ft (0.3m to 500m) |
| Mini Prism | CP01:8,200ft (1.3m to 2,500m); OR1PA:1,640ft (1.3m to 500m) |
| Reflector Sheet | 4.3ft to 1,640 ft (1.3m to 500m) |
|
Functions
|
|
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
|
Measurement Time
|
|
| Fine | 0.9s (initial 1.7s) |
| Rapid | 0.7s (initial 1.4s) |
| Tracking | 0.3 s (initial 1.4s) |
|
Laser Plummet
|
|
| Accuracy | 1 mm or less |
| Class | Class 2 laser |
| Wavelength | 635nm±10nm |
|
Laser Pointer
|
|
| Class | Coaxial red laser using EDM beam |
|
Interface
|
|
| Bluetooth | communication range: up to 980 ft (300 m) |
| USB | 8 GB USB memory stick and USB device port |
| Pin Port | RS232C |
