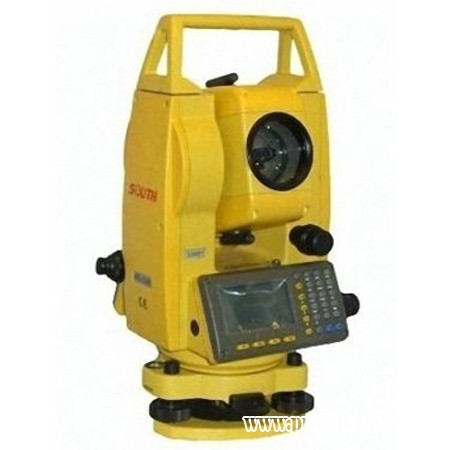

South NTS-312B |
||
|
Distance Measurement |
||
|
Max. range |
Single prism |
2KM |
|
Display |
Max.:999999.999 Min.:1MM |
|
|
Accuracy |
Prism 2+2PPM |
|
|
Measure time |
measure: 1s; tracking: 0.8s |
|
|
atmospheric correction |
input parameter and auto correction |
|
|
reflector constant correction |
input parameter and auto correction |
|
|
Angle Measurement |
||
|
Measure method |
absolute encoding |
|
|
diameter of disk |
79MM |
|
|
minimum reading |
1"/5" |
|
|
Accuracy |
2" |
|
|
detection method |
horizontal: dual vertical: dual |
|
|
Telescope |
||
|
image |
erect |
|
|
telescope length |
154MM |
|
|
effective aperture |
45mm (distance meter: 50mm) |
|
|
magnification |
30* |
|
|
resolving power |
3” |
|
|
field of view |
1°30’ |
|
|
minimum focus |
1.0m |
|
|
COMPENSATOR |
||
|
System |
single axis liquid |
|
|
compensating range |
+/-3' |
|
|
resolving power |
1" |
|
|
Vial |
||
|
Plate vial |
30"/2MM |
|
|
Circular vial |
8'/2MM |
|
|
OPTICAL PLUMMET |
||
|
image |
erect |
|
|
magnification |
3x |
|
|
focusing range |
0.5 ~ ∞ |
|
|
field of view |
5° |
|
|
DISPLAY and Storage |
||
|
Type |
Dual-side |
|
|
Storage |
10000 points |
|
|
Battery |
||
|
Power |
Ni-H rechargeable |
|
|
Voltage |
DC 6V |
|
|
operating time |
8hours |
|
|
Size and weight |
||
|
size |
200*180*350MM |
|
|
weight |
5.8kg |
|
