• 750 MB internal memory
• 1,640 foot range
• Long range Bluetooth
• Laser pointer and plummet
• Built-in MAGNET Field software
• 20-hour battery life
• Large dual color LCD touchscreen
• Alphanumeric keypad

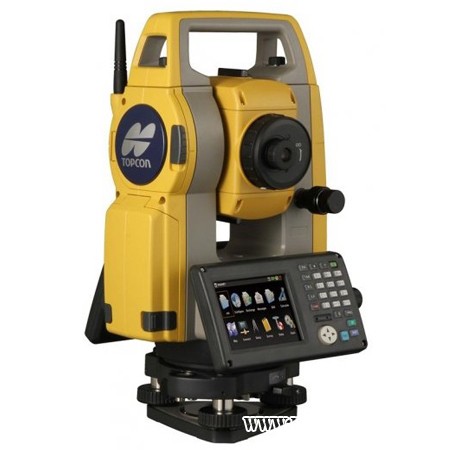

Features Topcon OS 103 3 Second Reflectorless Total Station
• 3-second accuracy
• 750 MB internal memory
• Up to 8GB USB flash memory
• LongLink Bluetooth technology
• 1,640 foot range
• Reflectorless
• Built-in MAGNET Field software for COGO calculations and stakeout
• Coaxial red laser pointer
• Laser plummet
• EDM trigger key for quick measurement
• USB and RS-232C serial port
• Up to 20-hour battery life
• Water resistant and dustproof to IP-65
• Large dual color LCD display
• Alphanumeric keyboard
• TSshield advanced security and maintenance system
Specifications Topcon OS 103 3 Second Reflectorless Total Station
|
General
|
|
| Weight | 12.3 lbs (5.6 kg) |
| Dimensions | 7.5 in x 7.5 in x 13.7 in (19.1 cm x 19 cm x 34.8 cm) |
| Warranty | 2-year |
| Protection Class | IP65 (dust proof and water jets resistant) |
| Internal Memory | 750 MB |
| Software | MAGNET Field |
| Guide Light | Green and red LED; Operating time: 1.3 to 150 m (4.3 to 490 ft) |
|
Angle Measurement
|
|
| Minimum Reading | 0.5-second/1-second |
| Accuracy | 3-second |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
| Minimum Reading | 500 m (1,640 ft) |
|
Tilt Sensor/Compensator
|
|
| Range | ± 6 |
| Type | Liquid |
| Method | Electronic Automatic |
|
Battery/Power
|
|
| Power Source | Rechargeable Li-ion battery |
| Battery Life | 20 hours |
| Battery Life Alert | yes |
|
Telescope
|
|
| Length of Tube | 6.7 in (17.1 cm |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.9 in (48mm) EDM |
| Magnification | 30x |
| Field of View | 1 degree 30 arcmin |
| Resolving Power | 2.5 arcsec |
| Minimum Focus Distance | 1.3 m (4.3 ft) |
| Reticle Illumination | 5 brightness levels |
| Reflectorless | yes |
|
Display and Keypad
|
|
| Type | Semi-transmissive TFT QVGA color LCD |
| Sides | Dual |
| Keys | Alphanumeric |
| Touchscreen | yes |
| Backlight | yes |
|
Temperature
|
|
| Operating | -4Fº~140ºF (-20ºC~60ºC) |
|
Applications
|
|
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | 5,000 m (16,400 ft) |
| Triple Prism | 6,000 m (19,680 ft) |
| No Prism | 500 m (1,640 ft) |
| Mini Prism | 500 m (1,640 ft) |
| Reflector Sheet | 500 m (1,640 ft) |
|
Functions
|
|
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
|
Measurement Time
|
|
| Fine | 0.9-second |
| Rapid | 0.7-second |
| Tracking | 0.3-second |
|
Laser Plummet
|
|
| Accuracy | ±1.0 mm/1.3 m |
| Class | 2 |
| Wavelength | 635 nm |
|
Interface
|
|
| Bluetooth | Class 1 LongLink technology |
| USB | Type A and mini B |
| Pin Port | RS-232C |
| Operating System | Windows CE 6.0 |
