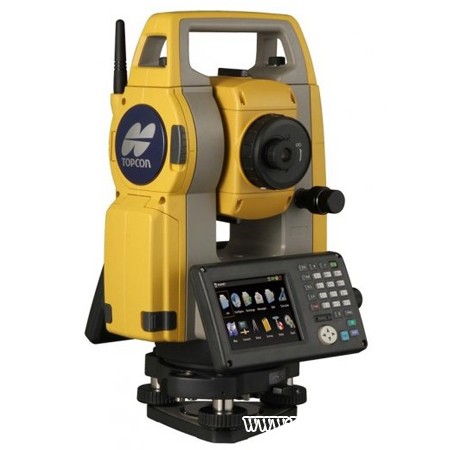

• Advanced Security & Maintenance with New TSshield™
• MAGNET Field On-board
• Exclusive LongLink™ Communications Functionality
• Fast and Powerful EDM
• Advanced Angle Accuracy
• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button
Specification
|
Angle Measurement |
|
|
Min. Resolution/Accuracy |
|
|
OS-101 |
0.5”/1” |
|
OS-102 |
1”/2” |
|
OS-103 |
1”/3” |
|
OS-105 (Single Display) |
1”/5” |
|
IACS (Independent Angle Calibration System) |
Standard om 1” & 2” models |
|
Compensation |
Dual-axis compensator |
|
Distance Measurement |
|
|
Prism EDM Range |
4000m (ES-107 3000m) |
|
Prism EDM Accuracy |
2mm+2ppm |
|
Non-Prism Range |
500m |
|
Non-Prism Accuracy |
3mm+2ppm (0.3-200m) |
|
Measuring Time |
Fine : 0.9 sec Rapid : 0.7 sec Tracking : 0.3 sec |
|
Communications |
|
|
LongLink™ rover communications utilizing Class 1 Bluetooth |
|
|
USB 2.0 Slot (Host + Slave) |
|
|
RS-232C Serial |
|
|
General |
|
|
Display/Keyboard |
Dual, Graphic, Touchsreen LCD (OS-105 Single) |
|
Battery Operation |
up to 36 hours |
|
Dust/Water Protection |
IP66 |
|
Wireless Connection |
Bluetooth Class 1 |
|
Operating Range |
-30C to +60C -35C to +60C * -20C to +60C ** |
