• Wavelength: 650nm
• Output Power: 10mW
• Range: Upto 10 Km
• Optical Connector: FC
• Power: 2 AA alkaline battery
• Plus Frequency: 2 to 3 Hz
Temperature range:
• Operation: -10'C to +45'C
• Storage: -40'C to +70'C
• Dimensions: 100*30*18mm
Specifications:
|
Type |

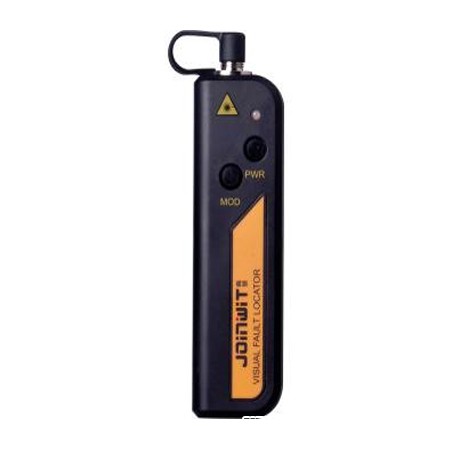

JW310N mini VFL |
|
Central Wavelength |
650nm±10nm |
|
Emitter Type |
FP-LD |
|
Output Power |
1mw or 10mw |
|
Optical Connector |
FC/2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
|
Operating Model |
Both CW and Pulse(2Hz) available |
|
Power Supply |
Two AAA alkaline batteries |
|
Battery Operating Time |
40hours Test with Panasonic LR6 AAA ALKALINE battery |
|
Operating Temperature |
-10~+60 (°C) |
|
Storage Temperature |
-25~+70 (°C) |
|
Dimension (mm) |
100*30*18 |
|
Weight |
37g |
